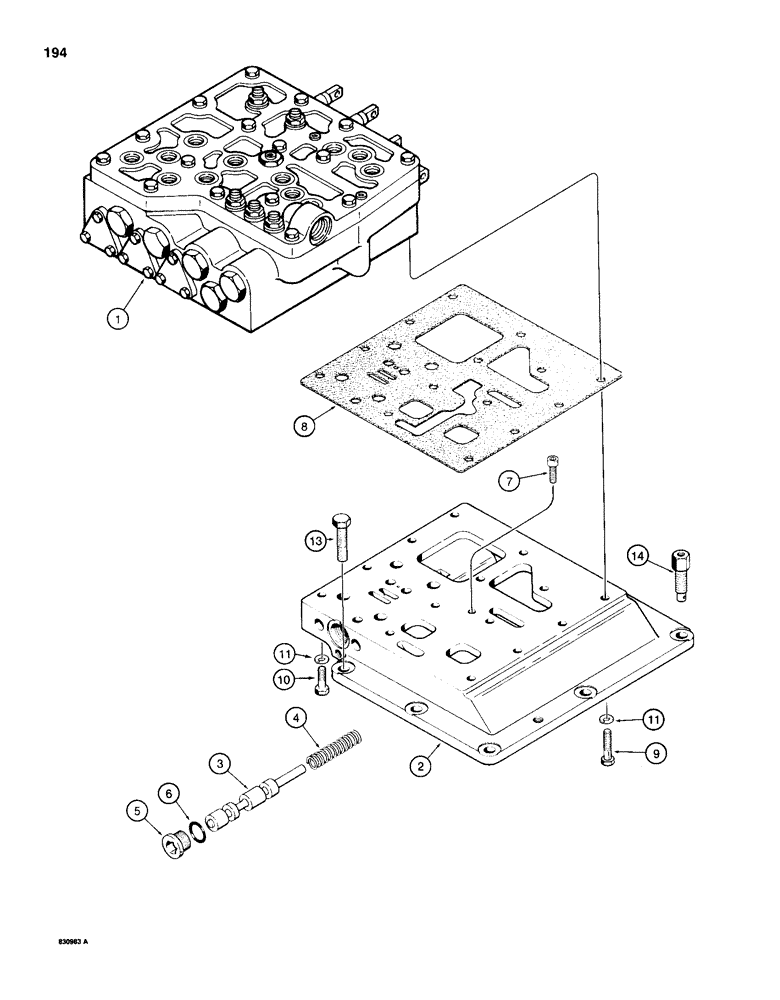

Запчасти Case 1150D (194) - TRANSMISSION CONTROL VALVE AND BASE (06) - POWER TRAIN

G105225

VALVE

CONTROL VALVE AND BASE ASSEMBLY - transmission, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL VALVE ASSEMBLY - complete parts list Figs. 197 - 201, Includes: Ref. 2 - 7

1шт.

A136287

BASE

ASSEMBLY - control valve, Includes: Ref. 2 - 7

1шт.

If looking for gasket to go under Base Assembly (A136287) the 1150E, G and H use 1348904C1

1шт.

2

NSS

NOT SOLD SEPARAT

BASE - valve

1шт.

3

A50782

SPOOL

- equalizer

1шт.

4

A50783

SPRING

- equalizer spool

1шт.

Part of control valve overhaul kit P/N G101836

1шт.

5

86625138

PLUG,7/18" - 14

Includes Ref. 6 Hex Soc, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

Part of control valve seal kit P/N G101835

1шт.

7

A51838

LOCK BOLT,1/4" - 20 x 0.75", Gr 8

SCREW - hex socket head, self-locking, 1/4" - 20 NC x 3/4"

1шт.

Part of control valve overhaul kit P/N G101836

1шт.

8

G107846

GASKET

- control, Serial Range: valve-base

1шт.

Part of control valve seal kit P/N G101835

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

10

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

12

B17428

LOCTITE

SEALANT - Gasket Eliminator, No. 504, control valve base to transmission housing, not shown

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

14

A51601

BOLT

ADAPTER - special, for transmission breather or fluid recovery bottle hose, Fig. 214

1шт.

G101835

GASKET KIT

KIT - control valve seal, Includes: Refs. 6 and 8, for complete kit , Fig. 212

1шт.

G101836

VALVE

KIT - control valve overhaul, Includes: Refs. 4 & 7, plus G101835 kit, for complete kit, Fig. 212

1шт.
