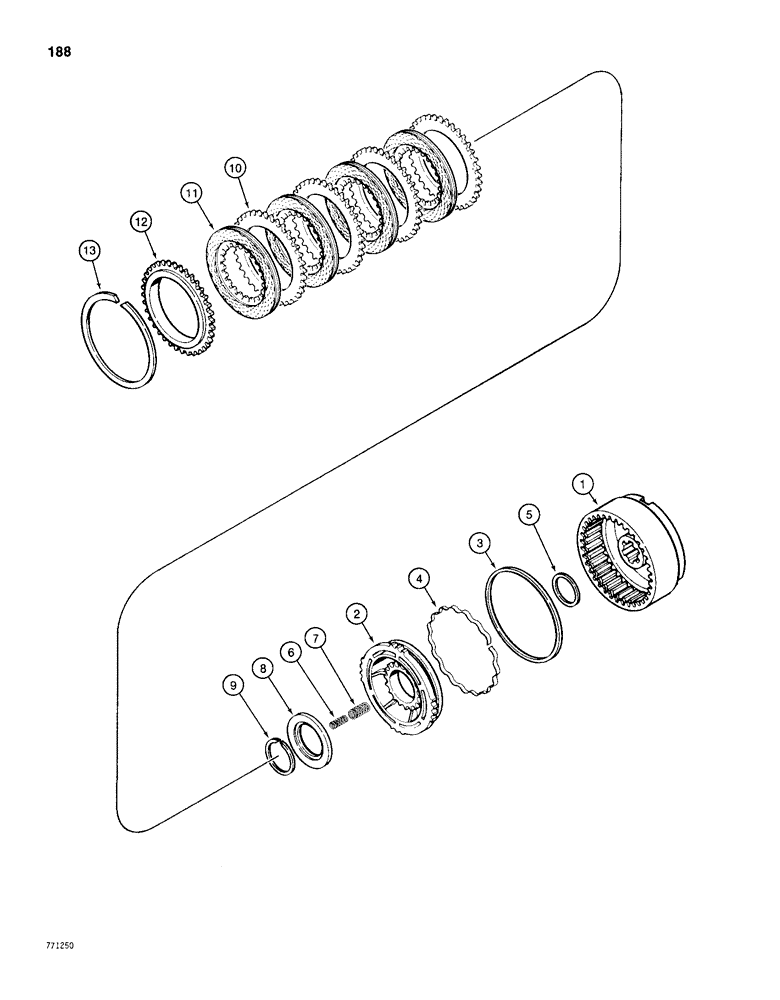

G102377
CLUTCH
ASSEMBLY - transmission, Includes: Ref. 1 - 13
8шт.
1
A50670
DRUM
HOUSING - clutch assembly
1шт.
2
A50571
PISTON
- clutch assembly
1шт.
3
A50414
SEALING RING
RING - seal, large
1шт.
Part of clutch repair kit P/N G101831
1шт.
4
G102095
SPRING
- wave type
1шт.
5
A50415
SEAL
RING - seal, small
1шт.
Part of clutch repair kit P/N G101831
1шт.
6
A51826
SPRING
- inner, piston return
18шт.
Part of clutch repair kit P/N G101831
1шт.
7
A51825
SPRING
- outer, piston return
18шт.
Part of clutch repair kit P/N G101831
1шт.
8
R11016
RETAINER
- spring
1шт.
9
A27233
RING
SNAP RING - retainer
1шт.
G102416
KIT
- clutch plates , Includes: Ref. 10 and 11
1шт.
10
G101711
PLATE
DISC - steel, external teeth
4шт.
11
G102354
PLATE
FRICTION DISC - internal teeth
4шт.
12
G103391
PLATE
- pressure, has part number on outer side
1шт.
13
30785
RING
SNAP RING - 0.125" (3.17 mm) thick
1шт.
Part of clutch repair kit P/N G101831
1шт.
13
A51827
RING
SNAP RING - 0.110" (2.79 mm) thick
1шт.
Part of clutch repair kit P/N G101831
1шт.
13
A51828
RING
SNAP RING - 0.092" (2.34 mm) thick
1шт.
Part of clutch repair kit P/N G101831
1шт.
G101831
GASKET KIT
KIT - clutch repair, Includes: Refs. 3, 5 - 7 & 13, for complete kit see Fig. 208
1шт.
Wave Spring G102095 is not included in kit G101831 and needs to be ordered seperately if clutch assembly being rebuilt has them
1шт.
