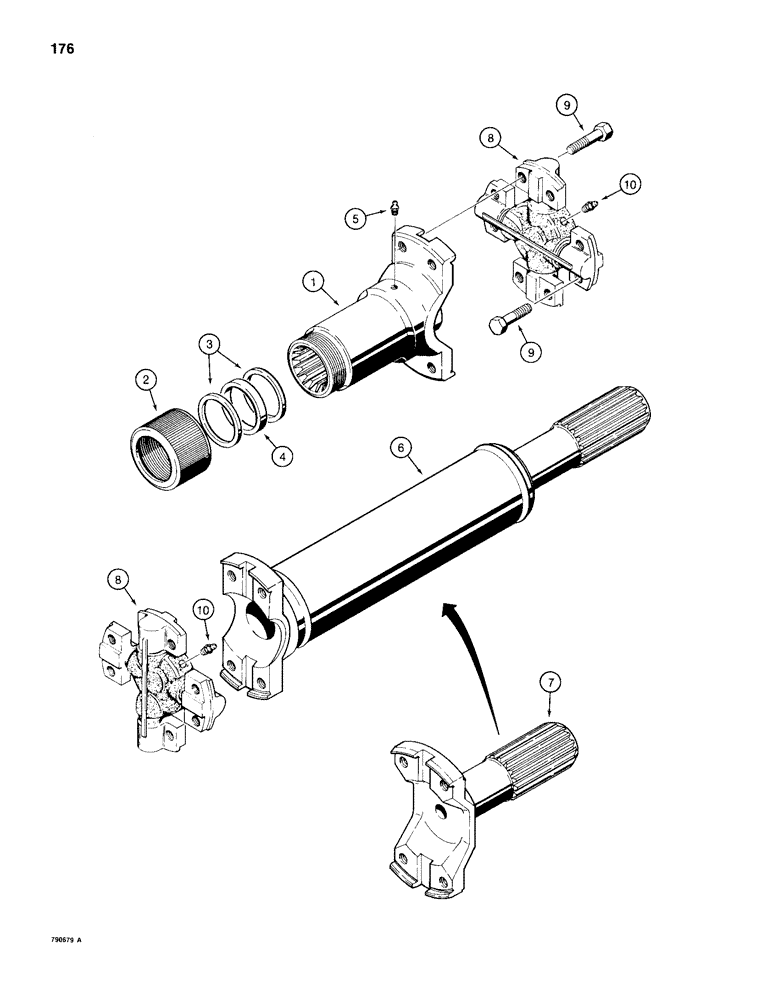

Запчасти Case 1150D (176) - R42732 DRIVE SHAFT - DOZER AND DRAWBAR MODELS, R42733 DRIVE LOADER MODELS (06) - POWER TRAIN

R42732

DRIVE SHAFT

ASSEMBLY - dozer and drawbar models

1шт.

R42733

DRIVE SHAFT

ASSEMBLY - loader models, Includes: Ref. 1 - 10

1шт.

A47519

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

2

A18388

CAP

- yoke

1шт.

3

A47521

WASHER

- felt retaining

2шт.

4

A18390

WASHER

- felt

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

1шт.

6

N6169

SHAFT

- R42732 drive shaft only

1шт.

7

N6162

YOKE

SHAFT - R42733 drive shaft only

1шт.

A45595

SPIDER ,U-JOINT

UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

9

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special

8шт.

10

219-417

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.
