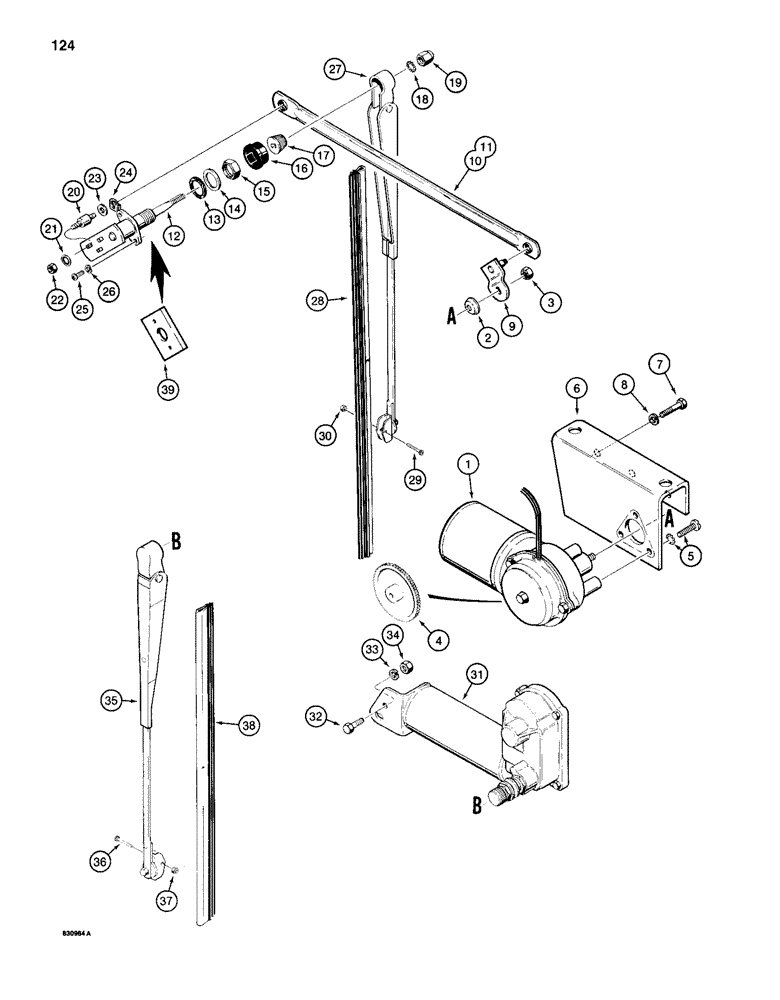

Запчасти Case 1150D (124) - CAB WINDSHIELD WIPERS (04) - ELECTRICAL SYSTEMS

F93654

WIPER MOTOR

MOTOR ASSEMBLY - front windshield wiper, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

2

D71411

WASHER

BELLEVILLE SPRING - motor mounting

1шт.

3

F44452

LOCK NUT

- special locking

1шт.

4

N6029

GEAR

- drive, plastic

1шт.

5

D72849

SCREW

- with lock washer, Serial Range: motor-bracket

3шт.

6

D72850

BRACKET

- motor mounting

1шт.

7

182-580

SCREW,Slotted Pan Hd, 1/4"-28 X 3/4"

MACHINE SCREW - pan head slotted, 1/4" - 28 NF x 3/4", plated

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

A36091

ARM

- drive

1шт.

10

D86566

LINK, CONNECTING

LINK - wiper arm, 14-5/8" (372 mm) long, used on dozer and drawbar models

1шт.

11

N7672

LINK, CONNECTING

LINK - wiper arm, 12-13/16" (325 mm) long, used on loader models

1шт.

D72848

SHAFT

PIVOT AND SHAFT ASSEMBLY - windshield wiper, Includes: Ref. 12 - 22

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - windshield wiper pivot

1шт.

13

D71417

SPECIAL WASHER

WASHER - felt

1шт.

14

D71418

WASHER

- flat

1шт.

15

D71419

NUT

- special

1шт.

16

D71420

CAP

COVER - rubber

1шт.

17

D71421

TOOL

BUSHING - with teeth

1шт.

18

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

19

D71422

NUT

DOME NUT - shaft

1шт.

20

D73642

PIN

- special

1шт.

21

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

23

A22431

WASHER

- spacer

2шт.

24

D71414

CLIP

RETAINER - spring clip

2шт.

25

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

MACHINE SCREW - round head, Phillips, No. 10 - 24 NC x 1/2", plated

2шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27

A165060

WIPER ARM

ARM - wiper, front, 18" (457 mm) long

1шт.

28

F42706

WINDSHIELD WIPER

BLADE - front wiper arm, 19" (483 mm) long, Includes: Ref. 29 & 30

1шт.

29

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - pan head slotted, No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

30

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

31

N8711

WIPER MOTOR

MOTOR - rear windshield wiper

1шт.

32

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

MACHINE SCREW - round head, Phillips, No. 10 - 24 NC x 1/2", plated

1шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

34

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

35

F42213

ARM

- wiper, rear, 16" (406 mm) long, Includes: Ref. 36 & 37

1шт.

36

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - pan head slotted, No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

37

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

38

A42580

WIPER BLADE,203.2mm L

BLADE - rear wiper arm, 16" (406 mm) long

1шт.

39

NSS

NOT SOLD SEPARAT

SPACER - pivot shaft mounting, loader models only

1шт.
