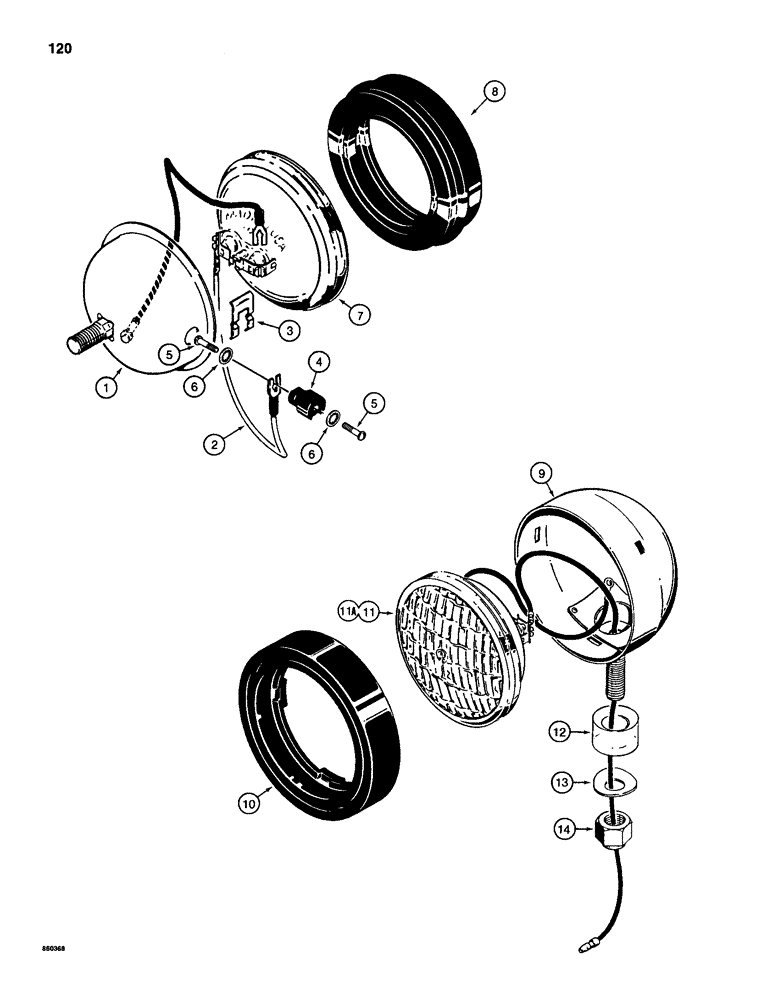

Запчасти Case 1150D (120) - LAMP ASSEMBLIES, L45149 HEAD LAMP ASSEMBLY, D71193 AND R51415 FLOOD LAMP ASSY (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, side lamp on models without ROPS only, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, with internal wire

1шт.

2

A40033

ELECTRICAL WIRE

WIRE -, Serial Range: bulb-insulator

1шт.

3

10927

SPRING

CLIP - retainer, insulator

1шт.

4

B50293

TERMINAL CONNECTOR

- bulb connection

1шт.

5

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/4"

2шт.

6

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

7

L10499

LAMP

BULB - sealed beam, 24 volt, No. 4589

1шт.

8

D31441

RETAINER

-, Serial Range: bulb-shell

1шт.

D71193

LAMP BASE

LAMP ASSEMBLY - 24 volt, sealed beam No. 4593, no longer available, replace with R51415 lamp assembly (must also order R51427 connecting wire on Fig. 112 for models without ROPS cab or canopy), Includes: Ref. 9 -14

2-4шт.

R51415

LAMP

ASSEMBLY - 24 volt, sealed beam No. 4589, Includes: Ref. 9 -14

2-4шт.

9

NSS

NOT SOLD SEPARAT

SHELL - lamp, with internal wire

1шт.

10

A25213

RETAINER

-, Serial Range: bulb-shell

1шт.

11

A25212

LAMP

BULB - sealed beam, 24 volt, No. 4593, D71193 lamp assembly only

1шт.

11a

L10499

LAMP

BULB - sealed beam, 24 volt, No. 4589, R51415 lamp assembly only

1шт.

12

D37048

BUSHING

- pivot

1шт.

13

D37049

WASHER

BELLEVILLE SPRING - special

1шт.

14

131-28

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2" - 20 NF, plated

1шт.
