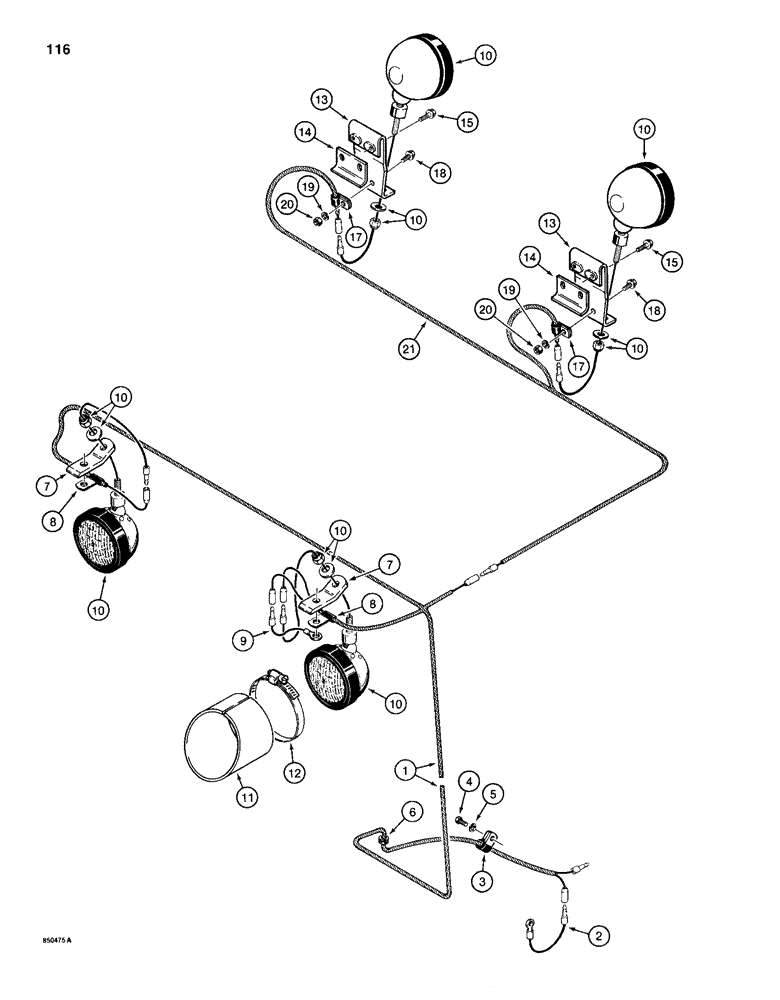

Запчасти Case 1150D (116) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, *REAR LAMPS MOUNTED OUTSIDE CANOPY SCREEN, IF USED (04) - ELECTRICAL SYSTEMS

1

R47470

HARNESS

- rear lamps

1шт.

2

R47807

ELECTRICAL WIRE

WIRE - ground, rear lamp harness, use transmission filter mounting plate hardware

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- rear harness, on hydraulic reservoir

1шт.

4

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

A23870

GROMMET

- rear harness, through top battery cover

1шт.

7

R51325

SUPPORT

BRACKET - rear lamp mounting, use rear screen mounting hardware

2шт.

8

49832

CLAMP

- rear lamp wires

2шт.

9

R51324

ELECTRICAL WIRE

WIRE - ground, right-hand rear lamp

1шт.

10

R51415

LAMP

ASSEMBLY - front and rear flood, Fig. 120

4шт.

11

R51323

GUARD

COVER - rear lamp

2шт.

12

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adjustable, lamp cover to lamp

2шт.

13

R47401

SUPPORT

BRACKET - front lamp mounting

2шт.

14

R47405

SUPPORT

CLAMP - bracket retaining

2шт.

15

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- front lamp harness to bracket

2шт.

18

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

R47471

HARNESS

- front lamps

1шт.
