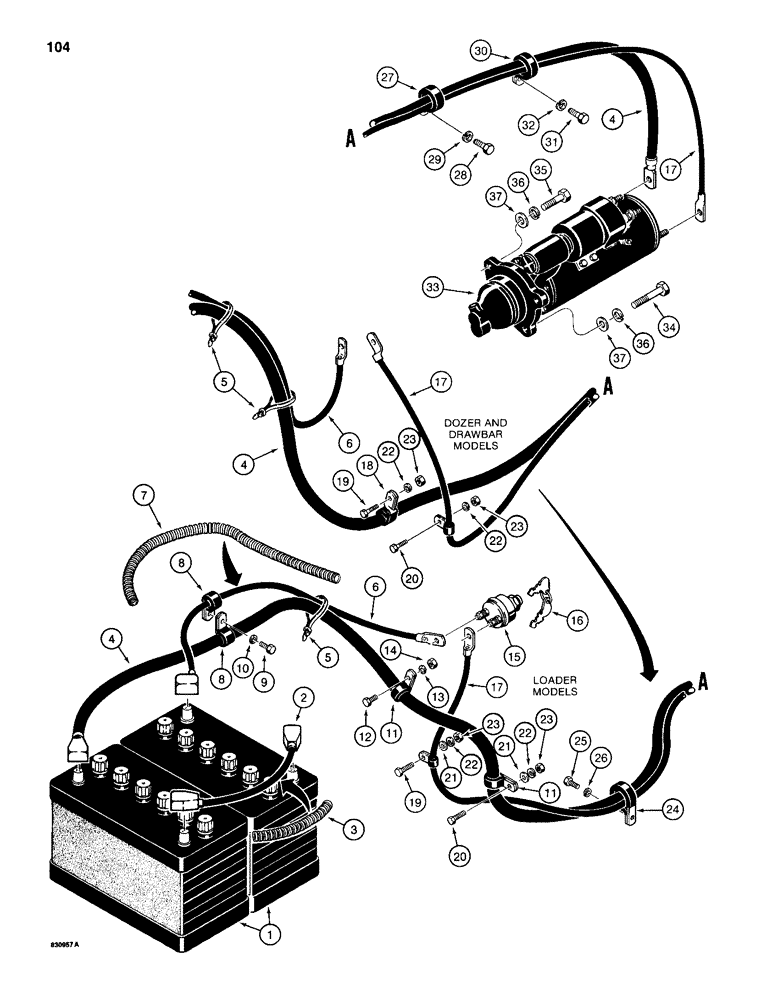

Запчасти Case 1150D (104) - REAR ELECTRICAL WIRING, BATTERY CABLES TO STARTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - see figure 102 for battery and mounting parts

2шт.

2

R47202

CABLE

- jumper, batteries

1шт.

3

R40777

CONDUIT

- plastic, 8" (203 mm) long, battery jumper cable, cut from bulk

1шт.

CONDUIT - bulk roll, 88 1/2" (2248mm) long

1шт.

4

R44953

CABLE PULLING GRIP

CABLE - battery, positive

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

R47203

CABLE

- battery, negative

1шт.

7

R40572

CONDUIT

- plastic, 25" (635 mm) long, negative battery cable, cut from bulk.

1шт.

CONDUIT - bulk roll, 88 1/2" (2248mm) long

1шт.

8

R14668

CLAMP

- battery cables

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

R14668

CLAMP

- positive battery cable, below key switch, used on loader models only

2шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Loader models only 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Loader models only 3/8"-16, G5

1шт.

15

R47440

SWITCH

KEY SWITCH - ignition, Includes: Ref. 16

1шт.

16

R30074

SET

KEY - switch, set of two

1шт.

17

R40474

CABLE

- ground, key switch to starter, includes clamp

1шт.

18

R43926

CLAMP

- twist, positive battery cable, used on dozer and drawbar models only

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

at hydraulic tube bracket, LH hole Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

at hydraulic tube bracket, RH hole Hex, 3/8"-16 x 1 1/2", G5

1шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used on loader models only

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

S86530

CLAMP

- positive battery cable and ground cable on right-hand side of main frame, used on loader models only

1шт.

25

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Loader models only Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Loader models only 3/8"

1шт.

27

S86530

CLAMP

- positive battery cable and ground cable, at brake mounting frame

1шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

S86530

CLAMP

- cables, at circuit breaker mounting plate

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

33

REF

INSTRUCTION

STARTER - for correct assembly and components, Figs. 88-94

1шт.

34

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

35

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

37

R24323

WASHER

- hardened, 1/2"

3шт.

R44806

LOOM

CONDUIT - bulk roll, 88-1/2" (2248 mm) long

1шт.
