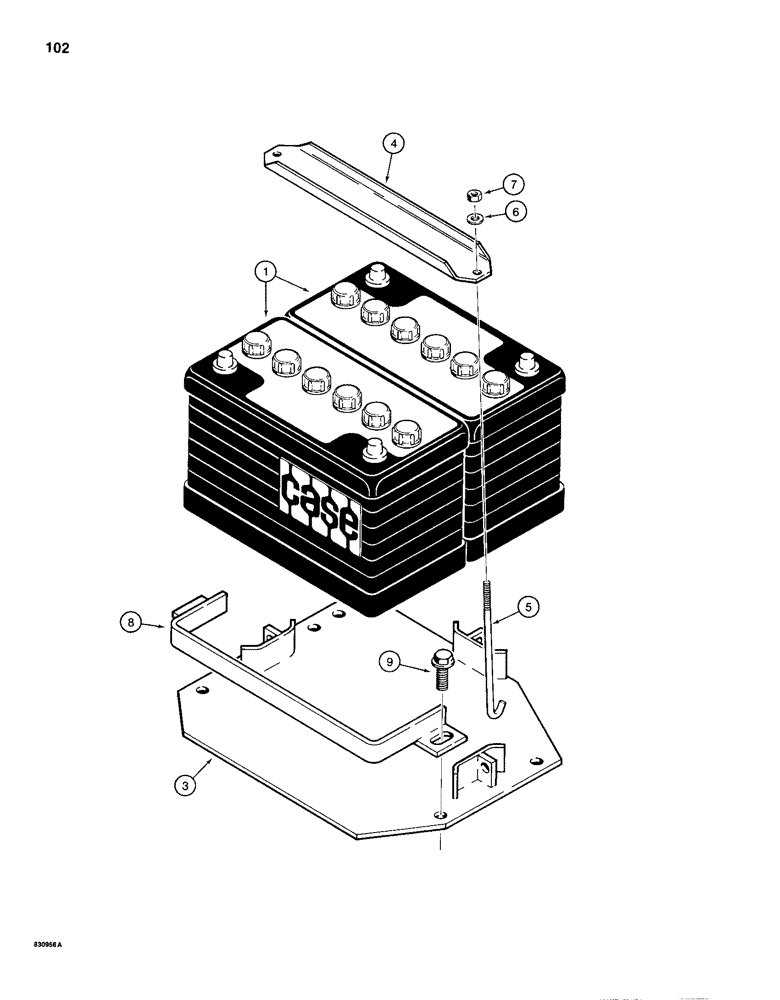

Запчасти Case 1150D (102) - BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, dry, low maintenance, service replacement

2шт.

3

R48739

SUPPORT

PLATE - battery support

1шт.

4

R46490

BRACKET

- top, battery retaining

1шт.

5

R27652

ROD

BOLT - J-type

2шт.

6

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

7

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

8

R48677

SUPPORT

BRACKET - rear, battery retaining

1шт.

9

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.
