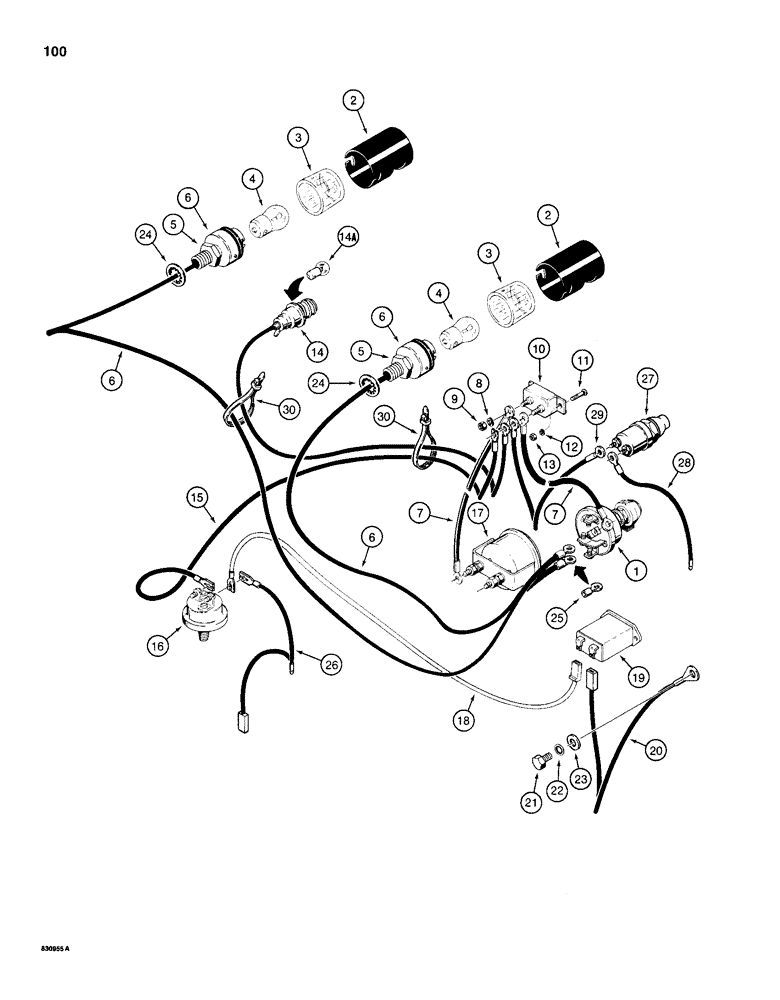

Запчасти Case 1150D (100) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

R27539

SWITCH

- lamp

1шт.

D35815

LAMP

ASSEMBLY - instrument panel, Includes: Ref. 2 - 6

2шт.

2

D37918

COVER

- lamp

1шт.

3

D37919

LENS

- lamp

1шт.

4

R19897

BULB

- No. 623

1шт.

5

D39095

NUT

- special

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - includes wire, trim wire to appropriate length before installation

1шт.

7

51200220

ELECTRICAL WIRE

WIRE - jumper

2шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

9

129-37

NUT,#10-32

2шт.

10

L104328

BREAKER

CIRCUIT BREAKER - 25 amp, lamps

1шт.

11

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW - pan Phillips head, No. 8 - 32 NC x 3/8", plated

2шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

13

129-16

NUT,#8-32

2шт.

14

R43546

LAMP

- transmission filter indicator, Includes: Ref. 14A

1шт.

14a

L32969

BULB

- lamp, No. 456R

1шт.

15

R33635

CABLE

WIRE - circuit breaker to pressure switch

1шт.

16

132244R91

SWITCH

- pressure, includes wire (wire not used)

1шт.

17

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

18

R29353

ELECTRICAL WIRE

WIRE - hourmeter to pressure switch, service replacement, 21-1/4" (540 mm) long, cut to required 12-3/16" (310 mm) length and replace the No. 10 snap spade

1шт.

19

L107631

METER

HOURMETER - engine

1шт.

20

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, attach to main frame

1шт.

21

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

22

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

23

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

24

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Lamp ground Int Tooth, 5/8"

2шт.

25

223-59

TERMINAL CONNECTOR

TERMINAL - eyelet, No. 8 screw size, 14-16 wire, for lamp wire installation

2шт.

26

R43547

CABLE

WIRE - with diodes, pressure switch to main wiring harness

1шт.

27

D34924

SWITCH

- push button, horn

1шт.

28

L71699

ELECTRICAL WIRE

WIRE - horn switch to front wiring harness

1шт.

29

F21342

ELECTRICAL WIRE

WIRE - horn switch to instrument panel circuit breaker

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
