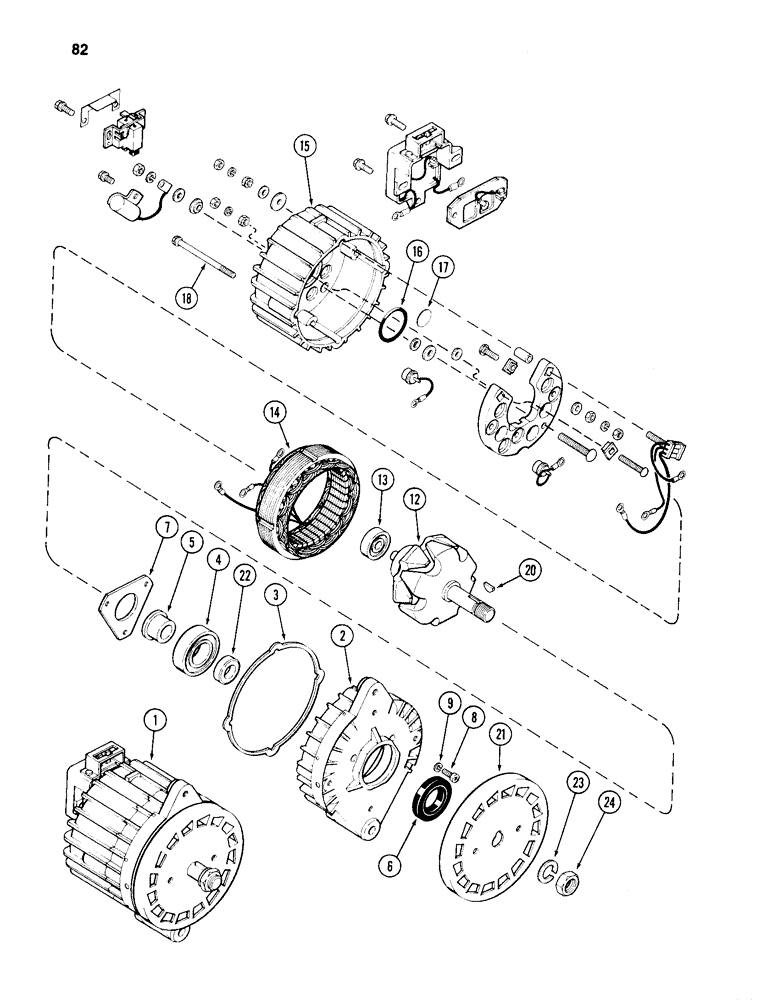

Запчасти Case 1150D (082) - R36588 ALTERNATOR, MOTOROLA NO. 70D44966E01 (04) - ELECTRICAL SYSTEMS

R36588

ALTERNATOR

ALTERNATOR ASSEMBLY - (Motorola No. 70D44966E01) (J I Case Installed)(Order 1-A47263 alternator, 1-A47275 voltage regulator and 1 each of 187-576 and 187-1090 screws)

1шт.

1

A47263

ALTERNATOR

ALTERNATOR ASSEMBLY - (Motorola No. 8TA3052C) (Service only) (Without voltage regulator), includes: Ref. 2 - 24

1шт.

1

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

2

A47266

HOUSING

HOUSING - front

1шт.

3

A43439

GASKET

GASKET - front housing to rear housing

1шт.

4

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - front housing, 2 inch (51 mm)

1шт.

5

A41052

SLEEVE

SLEEVE - pilot, rotor shaft

1шт.

6

A47160

SEAL

SEAL - front bearing

1шт.

7

A43280

RETAINER

RETAINER - front bearing

1шт.

8

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

SCREW - self-tapping, No. 8 x 1/2 inch

3шт.

9

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

12

A47267

ROTOR

ROTOR ASSEMBLY

1шт.

13

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rear, 1-3/16 inch (30 mm)

1шт.

14

A47268

STATOR

STATOR ASSEMBLY

1шт.

15

A47269

HOUSING

HOUSING - rear

1шт.

16

A47271

RETAINER

RETAINER - rear bearing (Order A43402)

1шт.

17

A43432

INSULATOR

SPARE PART INSULATOR - rear housing (Mica)

3шт.

18

A41037

BOLT

BOLT - through, No. 10-32 x 3-1/8 inch

4шт.

20

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

21

A47270

FAN

SPARE PART FAN - ventilating

1шт.

22

A47162

SPACER

SPACER - fan

1шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

A41035

NUT

NUT - pulley retaining, hex, 5/8 inch NF

1шт.
