Запчасти Case 1150D (078) - FUEL INJECTOR NOZZLE, 504BD AND 504BDT DIESEL ENGINES, BLUE COLOR CODE I.D. (03) - FUEL SYSTEM

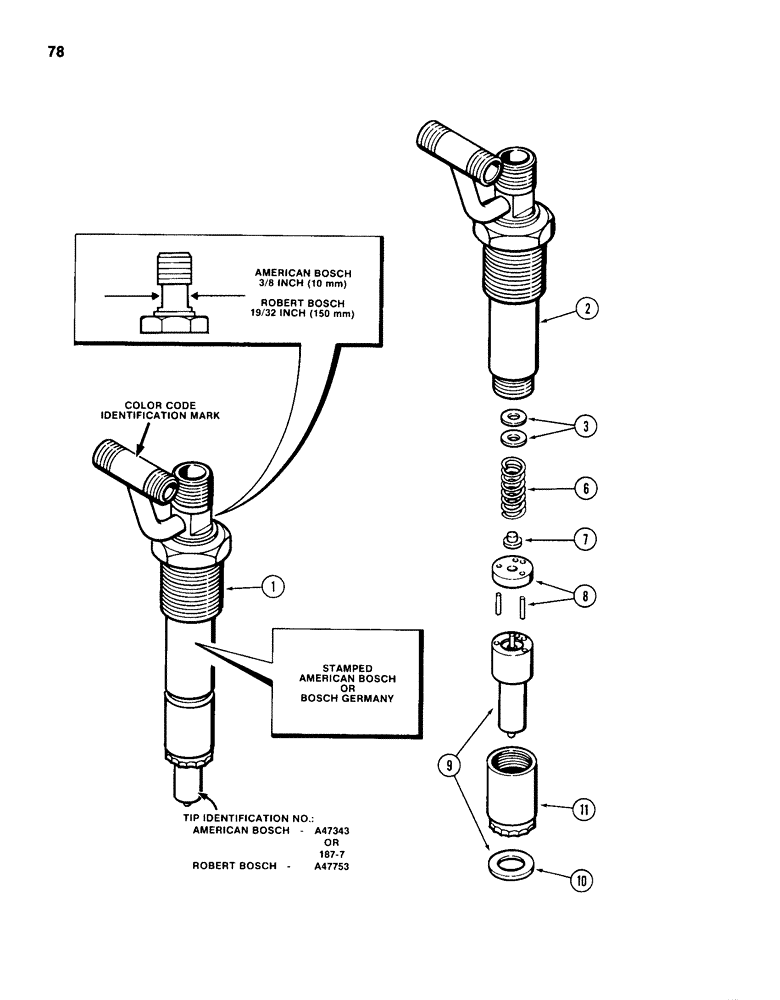

Схема запчастей Case 1150D - (078) - FUEL INJECTOR NOZZLE, 504BD AND 504BDT DIESEL ENGINES, BLUE COLOR CODE I.D. (03) - FUEL SYSTEM
10
8
7
3
6
1
9
2
11

Артикул

Название

Примечание

Количество

A156323

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11

6шт.

A156323R

REMAN-INJECT NOZZLE

1150D, 1155D

6шт.

A156323C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch, (Reference No. A67465) (10), Includes: Ref. 2 - 11

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156323)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure, Includes: Ref. 3 (One kit will repair six nozzles)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062 inch (1.57 mm) 6 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (0.05 mm) 80 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch (0.18 mm) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.25 mm) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch (0.64 mm) 20 in kit

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin (Includes dowel pins)

1шт.

9

A47343

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

When Nozzle is removed from head, A77640 gasket must be replaced before nozzle is put back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.

Выбрано товаров: 19
