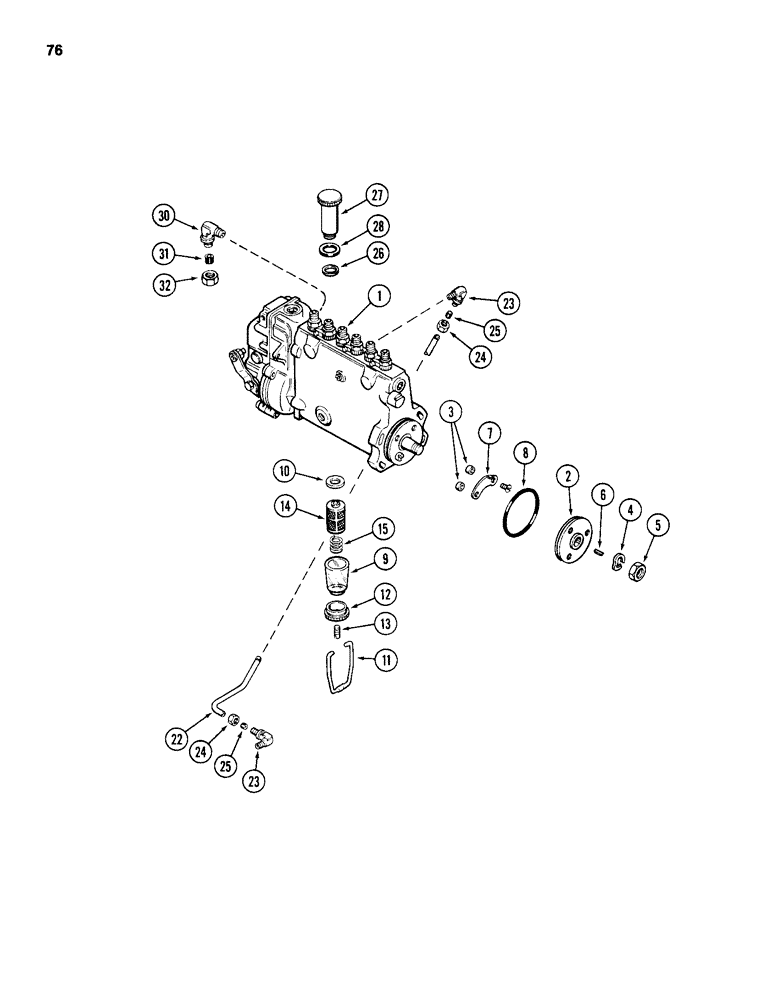

Запчасти Case 1150D (076) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

A155841

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (504BD Natural Aspirated Engine), Includes: Ref. 2 - 15

1шт.

1

A157064

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (504BDT Turbocharged Engine), Includes: Ref. 2 - 15

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock

1шт.

5

A42313

NUT

- hub retaining

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub

1шт.

9

A43347

BOWL

- filter (glass)

1шт.

10

A43346

GASKET

- filter bowl

1шт.

11

A43350

CLAMP

BAIL - bowl hanger

1шт.

12

A43348

NUT

- bowl seat

1шт.

13

A43349

STUD

- nut tension

1шт.

14

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

15

A43345

SPRING

- element

1шт.

22

A136903

TUBE

- lube, Serial Range: pump-block

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, Includes: Ref. 24 & 25

2шт.

24

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

A43351

SEAL

- port (copper)

1шт.

27

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 28

1шт.

28

A45342

GASKET

- primer

1шт.

30

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 3/8 tube x 1/4 inch, Includes: Ref. 31 & 32

1шт.

31

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube

1шт.

32

222-114

NUT,5/8"-24

NUT - 3/8 inch tube

1шт.
