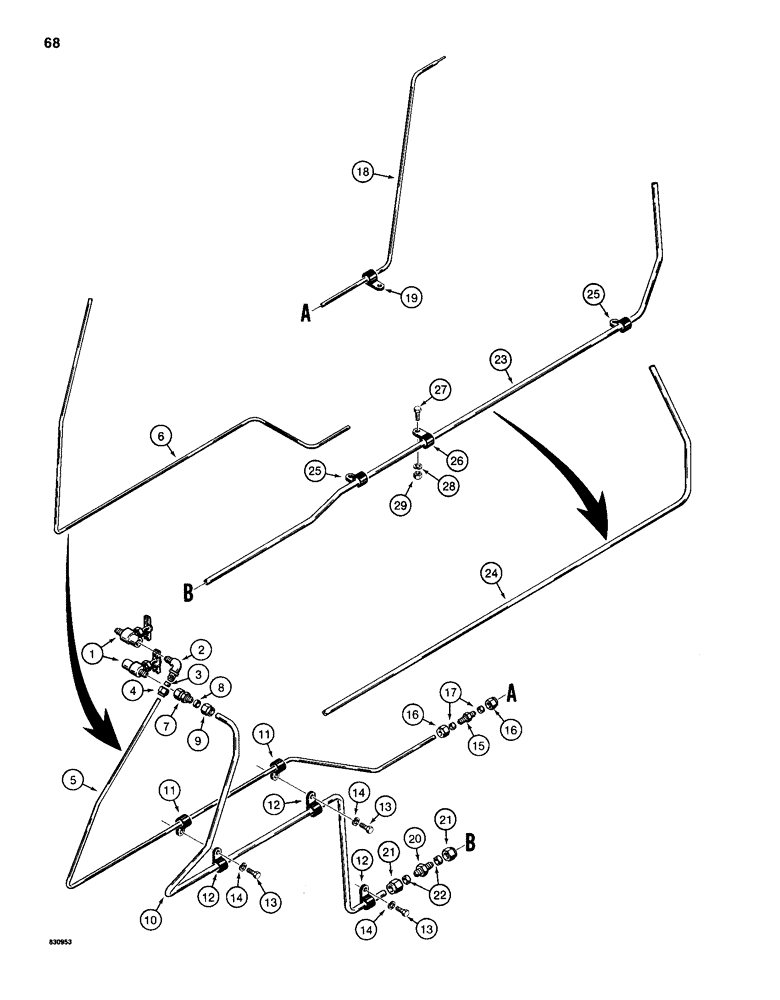

Запчасти Case 1150D (068) - FUEL LINES (03) - FUEL SYSTEM

1

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - fuel

2шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- 90 degree, upper, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

3

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - elbow

1шт.

5

R46233

FUEL TUBE

TUBE - dozer and drawbar models, upper, fuel return

1шт.

6

R46234

FUEL TUBE

TUBE - loader models, upper, fuel return

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - lower, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

222-104

SLEEVE,3/8" Tube

- adapter

1шт.

9

222-114

NUT,5/8"-24

NUT - adapter

1шт.

10

R53749

FUEL TUBE

TUBE - lower, fuel supply

1шт.

11

49851

SHIELD

- tube, 1/4" (6 mm) ID

2шт.

12

49852

PTO SHAFT

- tube, 3/8" (9 mm) ID

3шт.

13

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

222-3

FITTING,1/2"-24 Flex Tube

ADAPTER - straight, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

16

87017024

TUBE NUT,1/2"-24

NUT - adapter

2шт.

17

222-102

SLEEVE,1/4" Tube

Adapter 1/4" Tube

2шт.

18

R45850

LINE

TUBE - from fuel injectors

1шт.

19

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, 1/4" (6 mm) ID, use flywheel housing inspection cover hardware

1шт.

222-5

FITTING,5/8"-24 Flex Tube

ADAPTER - straight, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

21

222-114

NUT,5/8"-24

NUT - adapter

2шт.

22

222-104

SLEEVE,3/8" Tube

- adapter

2шт.

23

R42751

FUEL TUBE,0.375" OD

TUBE - fuel supply, dozer and drawbar models

1шт.

24

R27099

FUEL TUBE,0.375" OD

TUBE - fuel supply, loader models

1шт.

25

49852

PTO SHAFT

- tube, 3/8" (9 mm) ID, use hydraulic circuit hardware

2шт.

26

49852

PTO SHAFT

- tube, 3/8" (9 mm) ID, dozer and drawbar models only

1шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used on dozer and drawbar models Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used on dozer and drawbar models 5/16"

1шт.

29

9635082

NUT,5/16" - 18, Gr 5

Used on dozer and drawbar models 5/16"-18, G5

1шт.
