Запчасти Case 1150D (066) - FUEL TANK (03) - FUEL SYSTEM

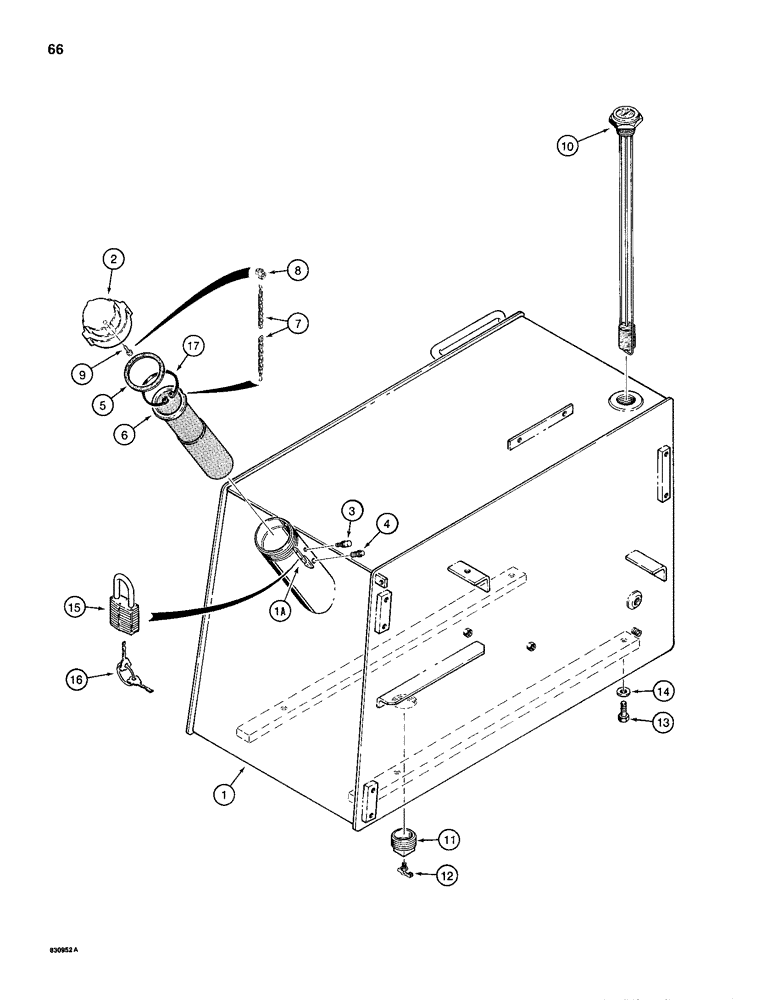

Схема запчастей Case 1150D - (066) - FUEL TANK (03) - FUEL SYSTEM
14
7
3
8
5
2
13
1a
14
12
9
16
10
6
1
15
4
11

Артикул

Название

Примечание

Количество

1

R47942

FUEL TANK

TANK - fuel, includes decals, Includes: Ref. 1A & 2

1шт.

1a

R46704

BRACKET

TAB - locking, fuel cap, weld on

1шт.

2

R46693

CAP

- fuel tank

1шт.

3

D33028

VALVE

- relief, fuel tank

1шт.

4

D33027

BREATHER

PLUG - air inlet, fuel tank

1шт.

5

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

- rubber, fuel cap

1шт.

6

R51771

STRAINER ASSY.

STRAINER - fuel, 600 micron

1шт.

7

R47786

CHAIN (CE)

CHAIN - fuel, Serial Range: cap-strainer

1шт.

8

R48634

FASTENER

SWIVEL - chain

1шт.

9

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- round head, No. 12 x 3/4"

1шт.

10

R49775

FUEL GAUGE

GAUGE - fuel tank

1шт.

11

R27578

PLUG

- drain

1шт.

12

217-81

VALVE

- drain, fuel tank

1шт.

13

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened

4шт.

15

D93753

PADLOCK

- fuel tank, includes keys, if used, Includes: Ref. 16

1шт.

16

R29555

KEY

- for Master padlock only

2шт.

16

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

17

D38743

SNAP RING,3.00", Int, #300

fuel strainer, chain, if used 3.00", Int, #300

1шт.

Выбрано товаров: 19
