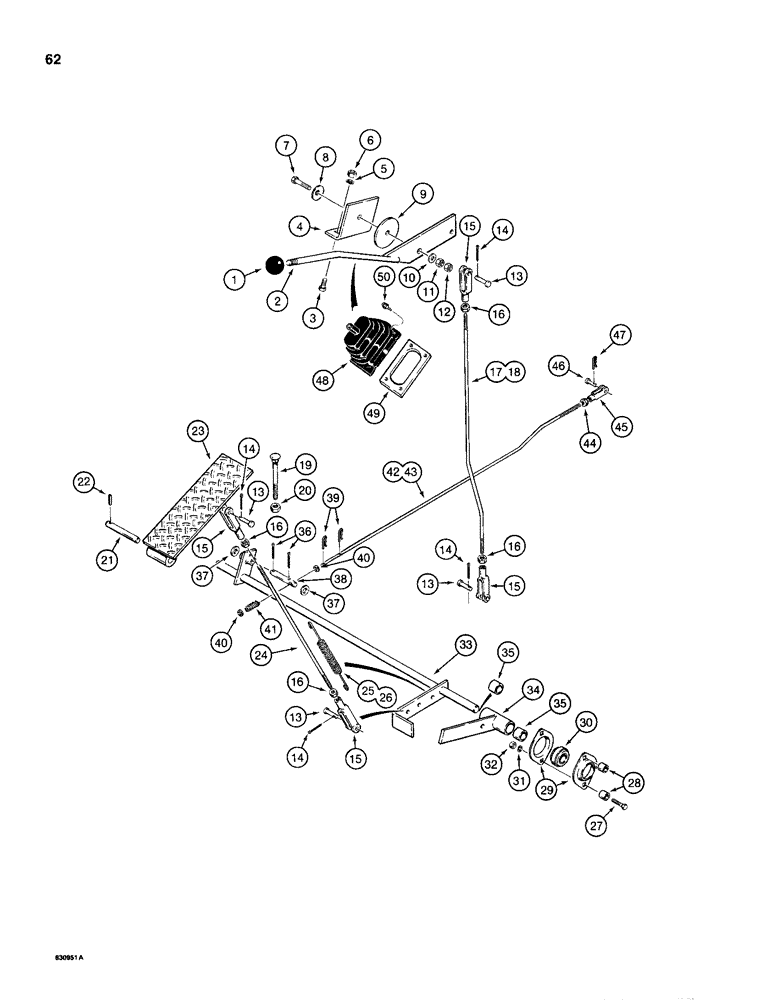

Запчасти Case 1150D (062) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D49996

KNOB

- lever

1шт.

2

R26931

LEVER

- hand throttle

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

R26944

SUPPORT

BRACKET - mounting, hand throttle

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

BELLEVILLE SPRING - lever mounting

1шт.

9

R15071

DISC

- friction

1шт.

10

195-106

WASHER,1/2"

- flat, , plated 1/2"

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

15

H44198

YOKE

CLEVIS - metal, 5/16" - 24 NF, plated, replaces fiberglass clevis used in production on some models

4шт.

16

129-122

NUT,5/16"-24, G5

4шт.

17

R26945

ROD

- connecting, hand throttle to connecting lever, dozer and drawbar models

1шт.

18

R46012

ROD

- connecting, hand throttle to connecting lever, loader models

1шт.

19

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

BOLT, CARRIAGE, Short NK, 1/2"-13 x 4", G2

1шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

21

R17364

SHAFT

- pedal, foot throttle

1шт.

22

135-737

GROOVED PIN,5/32" x 1", Type E

ROLL PIN - 5/32" x 1"

1шт.

23

R26937

PEDAL

- foot throttle

1шт.

24

D68927

THREADED ROD

ROD - connecting, foot throttle to cross shaft

1шт.

25

R36912

SPRING

- throttle return, pedal, dozer and drawbar models

1шт.

26

R33370

SPRING

- throttle return, pedal, loader models

1шт.

27

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

28

D34162

SPACER

- ball bearing

4шт.

29

F13526

FLANGED BEARING

FLANGE - ball bearing

4шт.

30

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

BALL BEARING - cross shaft

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

33

R26939

CROSS SHAFT

SHAFT - cross, throttle connecting

1шт.

34

R26934

LEVER

- connecting, hand throttle, Includes: Ref. 35

1шт.

35

R31144

BUSHING

- lever

2шт.

36

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

37

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

38

D47686

SHAFT

- override

1шт.

39

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

HAIR PIN - connecting rod, at cross shaft

2шт.

40

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

41

F62245

SPRING

- override

1шт.

42

R26946

ROD

- accelerator, loader models

1шт.

43

R26947

ROD

- accelerator, dozer and drawbar models

1шт.

44

129-121

NUT,1/4"-28, G5

1шт.

45

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - metal, 1/4" - 28 NF, replaces fiberglass clevis used in production on some models

1шт.

46

141-52

CLEVIS PIN,1/4" x .770"

- 1/4", plated

1шт.

47

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

HAIR PIN - connecting rod, at engine

1шт.

48

R47898

BELLOWS

BOOT - rubber, used on cab models

1шт.

49

R47895

ANCHOR

PLATE - retaining, used on cab models

1шт.

50

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated, if used

4шт.
