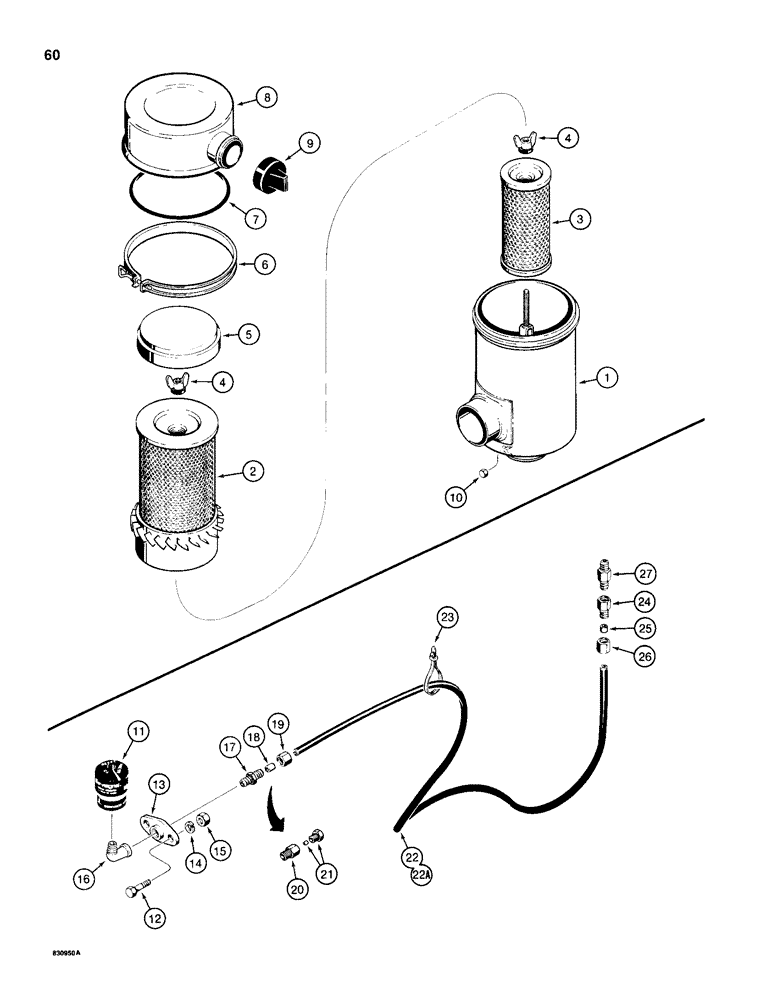

Запчасти Case 1150D (060) - AIR CLEANER AND RESTRICTION INDICATOR, AIR CLEANER ASSEMBLY (02) - ENGINE

R48001

AIR CLEANER

ASSEMBLY - used on all models, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

R29295

FILTER, ELEMENT

ELEMENT - primary, outer

1шт.

3

R36361

FILTER, ELEMENT

ELEMENT - secondary, inner

1шт.

4

L35499

NUT

WING - with washer

2шт.

5

D50942

BAFFLE

- air cleaner

1шт.

6

D50941

CLAMP

- air cleaner

1шт.

7

D50946

GASKET

O-RING - air cleaner cup

1шт.

8

D50943

CUP

- air cleaner

1шт.

9

L30414

VALVE

CUP - dust, rubber

1шт.

10

R21180

CAP

CUP - hex, 1/8" NPT, if used

1шт.

11

A59568

INDICATOR

RESTRICTION- air cleaner

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Air restriction indicator Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

13

H357707

FLANGE

- air restriction indicator mounting

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Air restriction indicator 1/4"

2шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Air restriction indicator

2шт.

16

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, brass, air restriction indicator 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

D35816

CONNECTOR, ELEC

ADAPTER ASSEMBLY - straight, service with 222-400 adapter, Fig. 20 & 21, air restriction indicator, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - adapter, air restriction indicator

1шт.

18

D37176

SLEEVE

- adapter, air restriction indicator

1шт.

19

D37362

TUBE NUT

- adapter, air restriction indicator

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER ASSEMBLY - service replacement, air restriction indicator, Includes: Ref. 20 & 21

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - adapter, air restriction indicator

1шт.

21

222-500

TUBE NUT,5/16" - 24 NPT

SLEEVE - adapter, air restriction indicator

1шт.

22

R42803

PLASTIC-RUBBER TUBE

TUBE - nylon, 55-1/2" (1410 mm) long, restriction indicator to engine, used on models, air restriction indicator

1шт.

The air restriction indicator nylon tube may be cut to the required length from bulk tubing. See the Parts Substitution List for bulk tube options.

1шт.

without a turbocharger, if used, air restriction indicator

1шт.

22a

D36961

TUBE

nylon, 42" (1067 mm) long, to air cleaner, used on, restriction indicator

1шт.

The air restriction indicator nylon tube may be cut to the required length from bulk tubing. See the Parts Substitution List for bulk tube options.

1шт.

models with a turbocharger, if used, air restriction indicator

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - tie, 15 inch, nylon, air restriction indicator

1шт.

D35091

PIPE FITTING

ADAPTER - female, air restriction indicator, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - adapter, air restriction indicator

1шт.

25

D37176

SLEEVE

- adapter, air restriction indicator

1шт.

26

D37362

TUBE NUT

- adapter, air restriction indicator

1шт.

27

D36264

FITTING

ADAPTER - special, filter type, air restriction indicator

1шт.
