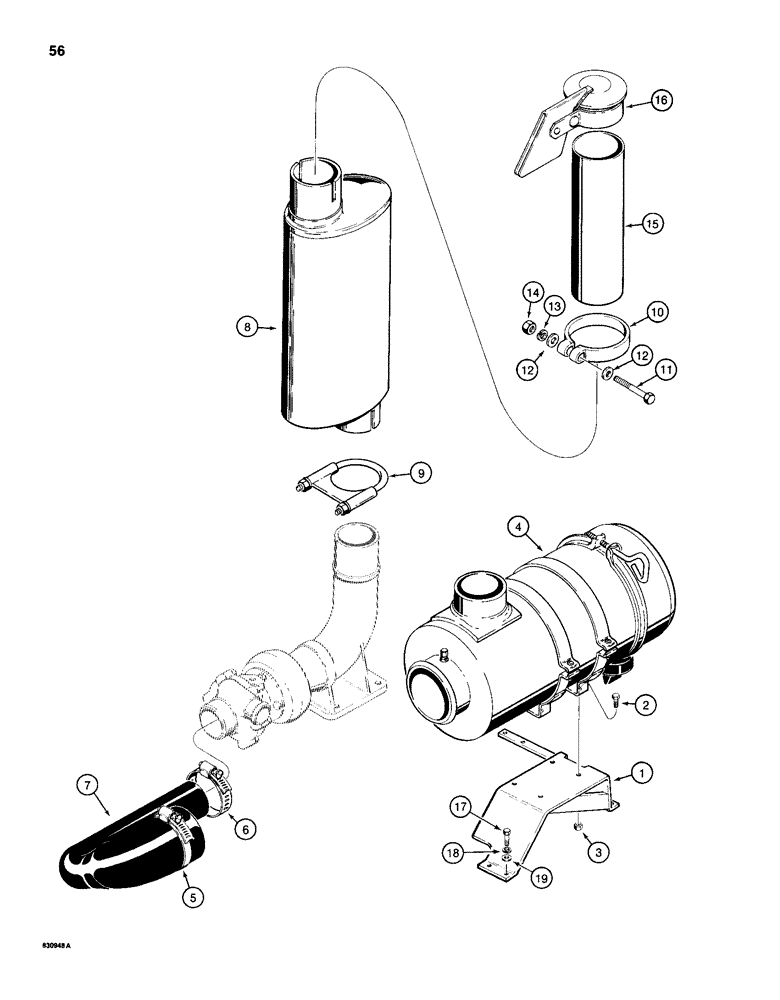

Запчасти Case 1150D (056) - AIR CLEANER AND MUFFLER MOUNTING, LOADER MODELS WITH TURBOCHARGER (02) - ENGINE

1

R48410

BRACKET

- air cleaner mounting

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

4

R48001

AIR CLEANER

ASSEMBLY - Fig. 60

1шт.

For air cleaner intake parts, Fig. 52.

1шт.

5

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - hose, upper

1шт.

6

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - hose, lower

1шт.

7

R38933

INTAKE AIR HOSE,3.00" ID, 5.00" ID x 14.80", SAE 10R4, SAE SC-810

- Air cleaner 3.00" ID, 5.00" ID x 14.80", SAE 10R4, SAE SC-810

1шт.

8

R43075

MUFFLER

- exhaust

1шт.

9

A17851

CLAMP

- muffler, includes hardware

1шт.

10

R45478

CLAMP

- exhaust pipe

1шт.

11

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, plated

1шт.

15

R43368

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler

1шт.

16

A19795

CAP

- rain, exhaust pipe

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.
