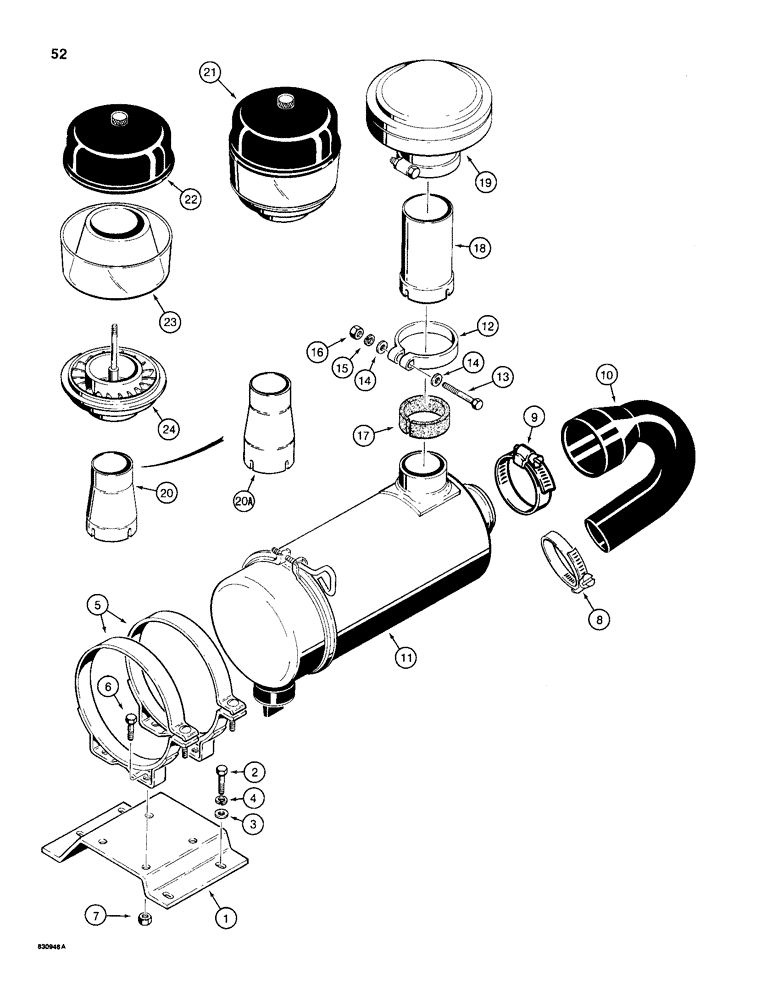

Запчасти Case 1150D (052) - AIR CLEANER MOUNTING AND INTAKE PARTS (02) - ENGINE

1

R27204

BRACKET

- air cleaner mounting, models without turbocharger

1шт.

For air cleaner mounting bracket and hose used on models with a turbocharger, Figs. 56 or 58.

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A16574

BAND

CLAMP ASSEMBLY - includes hardware

2шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

8

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - hose, lower

1шт.

9

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - hose, upper

1шт.

10

R46723

HOSE

- air cleaner, models without turbocharger

1шт.

For air cleaner mounting bracket and hose used on models with a turbocharger, Figs. 56 or 58.

1шт.

11

R48001

AIR CLEANER

- Fig. 60

1шт.

12

R48474

CLAMP

- air cleaner pipe

1шт.

13

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, plated

1шт.

17

R43072

NOISE PROTECTION

PAD - seal, air cleaner pipe

1шт.

18

R48472

MUFFLER

PIPE - used with standard air cleaner cap, 9-1/2" (241 mm) long, if used

1шт.

19

R48475

CAP

- air cleaner, if used

1шт.

20

R48473

WHISTLE

PIPE - used with precleaner assembly, 7-1/2" (190 mm) long, if used

1шт.

20a

R52923

WHISTLE

PIPE - used with precleaner assembly, 9" (230 mm) long, if used

1шт.

21

A43616

FILTER

PRECLEANER ASSEMBLY - if used, Includes: Ref. 22 - 24

1шт.

22

A42465

COVER

- precleaner

1шт.

23

A42467

HOUSING

BOWL - precleaner

1шт.

24

NSS

NOT SOLD SEPARAT

BASE - precleaner

1шт.
