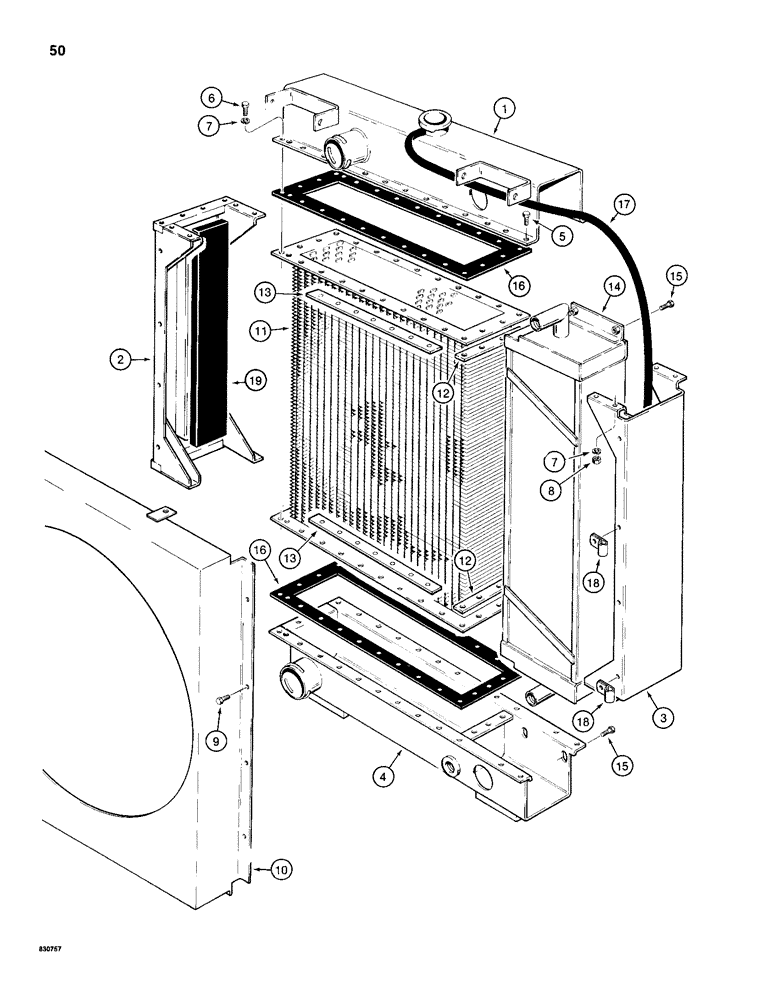

Запчасти Case 1150D (050) - HEAVY DUTY ANTISANDBLAST RADIATOR ASSEMBLY, WITH COOLER TANK ON THE SIDE (02) - ENGINE

R48933

RADIATOR

ASSEMBLY - heavy duty antisandblast, General Thermodynamics No. 987-A, Includes: 1 - 19

1шт.

1

N8660

TOP

TANK - top

1шт.

2

N8662

SIDE PLATE

FRAME - side, left-hand

1шт.

3

N8663

SIDE PLATE

FRAME - side, right-hand

1шт.

4

N8661

TANK

- bottom

1шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

60шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Core ends

8шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

68шт.

8

9635082

NUT,5/16" - 18, Gr 5

60шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

N8665

SHROUD ASSY.

SHROUD - radiator

1шт.

11

N8670

CORE

- radiator, steel

1шт.

12

N8667

WASHER

PLATE - reinforcement, core ends

2шт.

13

N8668

WASHER

PLATE - reinforcement, core

4шт.

14

N8666

COOLER, OIL

OIL COOLER - radiator

1шт.

15

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Oil cooler mounting Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

16

N8792

GASKET

- core, formed, one-piece

2шт.

17

NSS

NOT SOLD SEPARAT

TUBE - overflow

1шт.

18

NSS

NOT SOLD SEPARAT

CLIP - overflow tube

2шт.

19

N7887

PADDING

INSULATOR - vibration

1шт.
