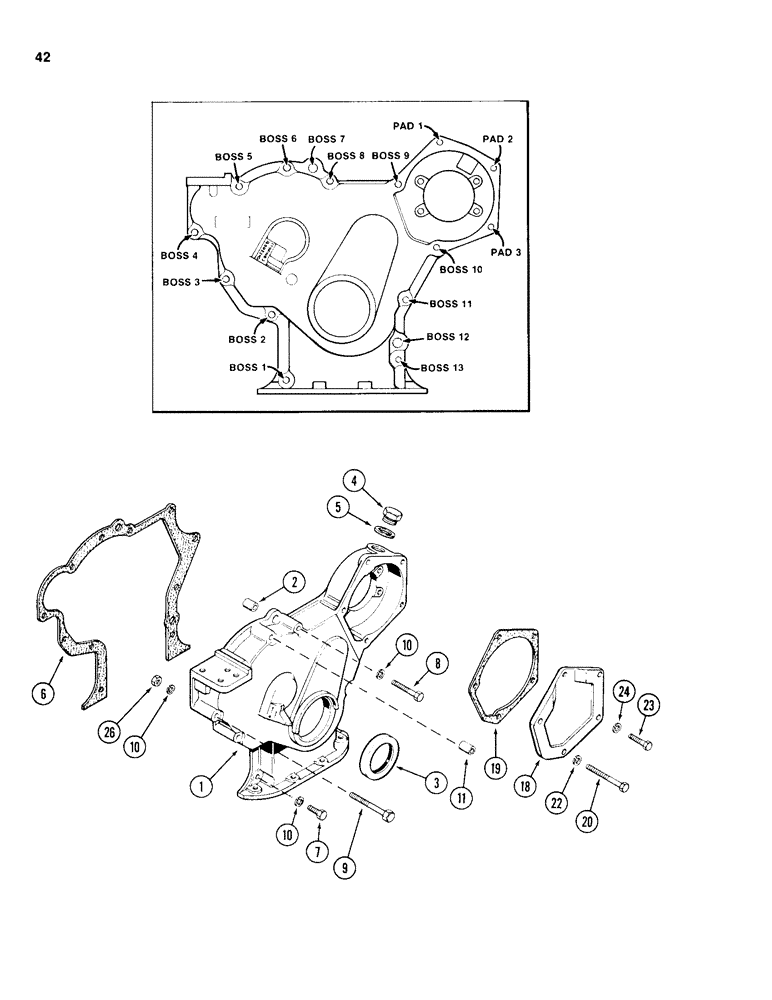

Запчасти Case 1150D (042) - TIMING GEAR COVER, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A166141

HOUSING

COVER ASSEMBLY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating

2шт.

3

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft

1шт.

4

A21140

PLUG

- timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - timing hole plug

1шт.

6

A58612

GASKET

- timing, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Boss 3, 6 and 8)

3шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point

1шт.

18

A61053

COVER

- injection pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

A151921

BOLT

- hex, 3/8 NC x 1-1/4 inch (head drilled for anti-tamper wire) Pad 2 and 3

2шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 7/8 inch (Pad 1) ( replaced 13-514 )

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC (Boss 4 and 5)

2шт.
