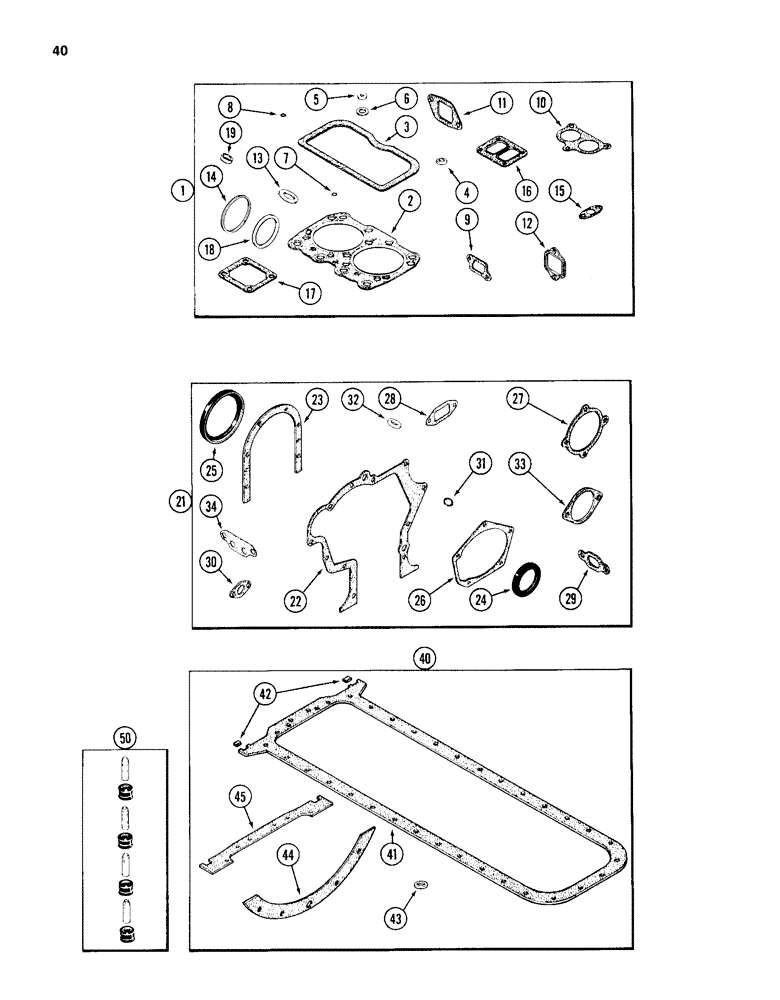

Запчасти Case 1150D (040) - ENGINE GASKET KITS, 504BD AND 504BDT DIESEL ENGINE, VALVE GRIND (02) - ENGINE

1

A157300

GASKET

KIT - valve grind, Includes: Ref. 2 - 19

1шт.

For complete engine overhaul order A157300, A44075 and A152479

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover

3шт.

4

A142098

GROMMET

GASKET - cover studs

6шт.

5

A34133

GASKET

- breather tube bolt

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold (metal faced)

6шт.

13

1342829C1

GASKET

WASHER - injection nozzle; Replaces A76640

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

19

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- nozzle tip (carbon)

6шт.

21

A44075

GASKET KIT

- cylinder block, Includes: Ref. 22 - 34

1шт.

For complete engine overhaul order A157300, A44075 and A152479

1шт.

22

A58612

GASKET

- timing gear cover, cyl block kit

1шт.

23

A32830

GASKET

- rear seal retainer, cyl block kit

1шт.

24

A62049

OIL SEAL

- oil, crankshaft front, cyl block kit

1шт.

25

A62050

OIL SEAL

- oil, crankshaft rear, cyl block kit

1шт.

26

A58615

GASKET

- fuel pump cover, cyl block kit

1шт.

27

A58646

GASKET

- water pump, cyl block kit

1шт.

28

A58649

GASKET

- water pump body, cyl block kit

1шт.

29

A58670

GASKET

- oil cooler tube to, cyl block kit

1шт.

30

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump, cyl block kit

1шт.

31

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base, cyl block kit

3шт.

32

A58613

SEALING WASHER

GASKET - timing gear cover plug, cyl block kit

1шт.

33

A58617

GASKET

- auxiliary drive cover, cyl block kit

1шт.

34

A58756

OIL PAN GASKET SET

- oil filter boss, cyl block kit

1шт.

40

A152479

GASKET KIT

- oil pan, Includes: Ref. 41 - 45

1шт.

For complete engine overhaul order A157300, A44075 and A152479

1шт.

41

A150688

GASKET

- pan to block, oil

1шт.

42

A150690

OIL PAN GASKET SET

- corner, pan to housing, oil

2шт.

43

A27968

RING

- drain plug (copper), oil pan

1шт.

44

A57966

GASKET

- pan to transmission housing, lower, oil

1шт.

45

A150689

GASKET

- flywheel housing, oil pan

1шт.

50

M20614

SEAL KIT

SEAL KIT - valve (Includes four seals and installation sleeve), oil pan

1шт.
