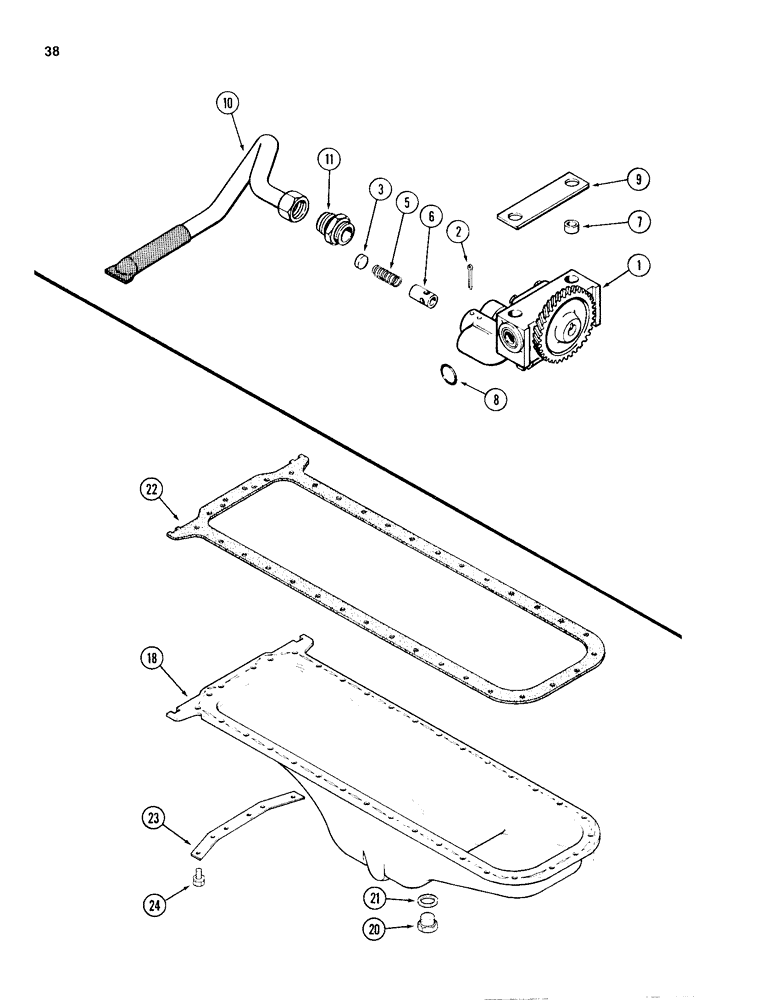

Запчасти Case 1150D (038) - OIL PUMP, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, includes: Ref. 2 - 7

1шт.

2

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

3

41-1011

PLUG,Cup, 11/16"

- relief valve, cup type, 11/16 inch (18 mm)

1шт.

5

A155980

SPRING

- relief valve

1шт.

6

A65083

VALVE

- oil pressure regulating

1шт.

7

A58915

SLEEVE

- pump locating

1шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block

1шт.

9

A58859

SHIM,.005" Thk

Pump to brg. cap (0.127 mm) .005" Thk

1шт.

10

A142503

SCREEN

TUBE - oil suction

1шт.

11

A142004

CONNECTOR, ELEC

CONNECTOR- suction tube

1шт.

18

A157043

PAN

ASSEMBLY - oil, engine

1шт.

20

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

21

A27968

RING

- drain plug (copper), oil pan kit

1шт.

22

REF

INSTRUCTION

GASKET - oil pan (Fig. 41)

1шт.

23

A65999

STRAP

- pan reinforcement, oil pan kit

1шт.

24

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex with washer, 3/8 NC x 7/8 inch, oil pan kit

34шт.
