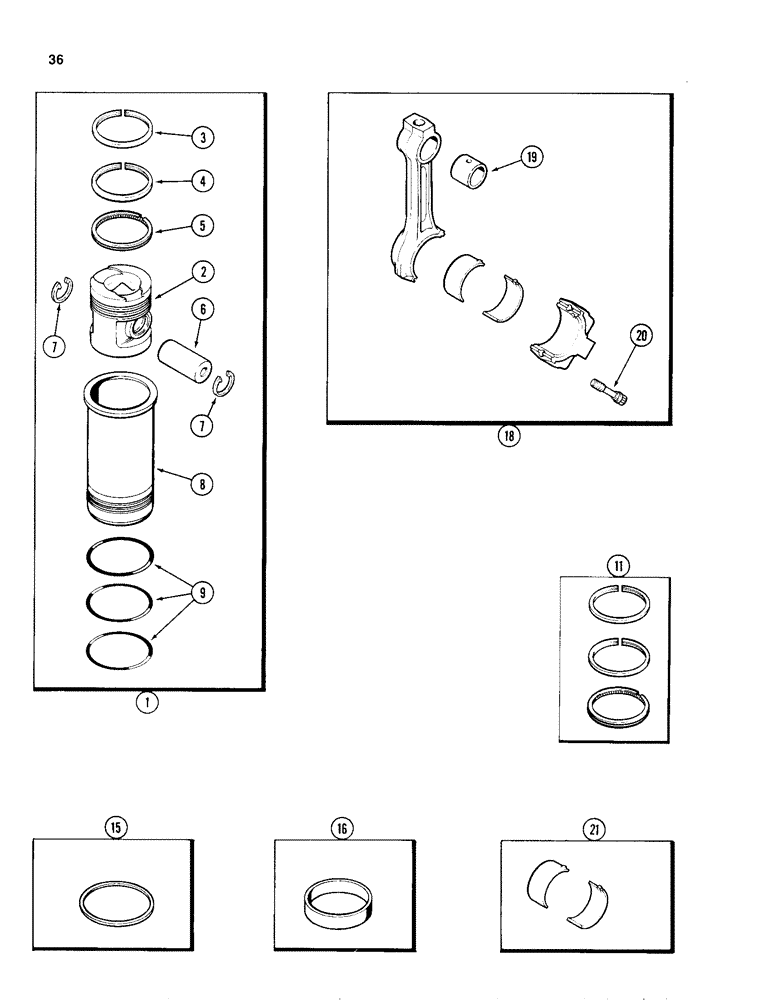

Запчасти Case 1150D (036) - PISTONS AND SLEEVES, 504BD AND 504BDT DIESEL ENGINE, CONNECTING RODS (02) - ENGINE

1

A166134

SET

PISTON AND SLEEVE ASSEMBLY - engine, Includes; Ref. 2 - 9

3шт.

2

A166122

PISTON

PISTON - cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref 11) (Reference No. A166119)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref 11) (Reference No. A66509)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref 11) (Reference No. A66530)

2шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

2шт.

7

D27833

SNAP RING,1.625", Int, #162

RING, Snap, , piston pin 1.625", Int, #162

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, three groove

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

6шт.

11

A48320

SET

RING KIT - piston re-ring (Set of 1)

6шт.

15

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 mm) (Repairs Only)

1шт.

15

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 mm) (Repairs Only)

1шт.

16

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs Only)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Including: Ref. 19 & 20

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin 1.6254/1.6258

1шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin 1.784/1.788

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

21

A43173

BEARING LINER

INSERT - connecting rod bearing (Standard) (Set of 2)

6шт.

21

A43174

BEARING LINER

INSERT - connecting rod bearing, 0.002 inch (0.051 mm) undersize (Set of 2)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.010 inch (0.254 mm) undersize (Set of 2)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.020 inch (0.508 mm) undersize (Set of 2)

6шт.

21

A43177

BEARING LINER

INSERT - connecting rod bearing, 0.030 inch (0.762 mm) undersize (Set of 2)

6шт.
