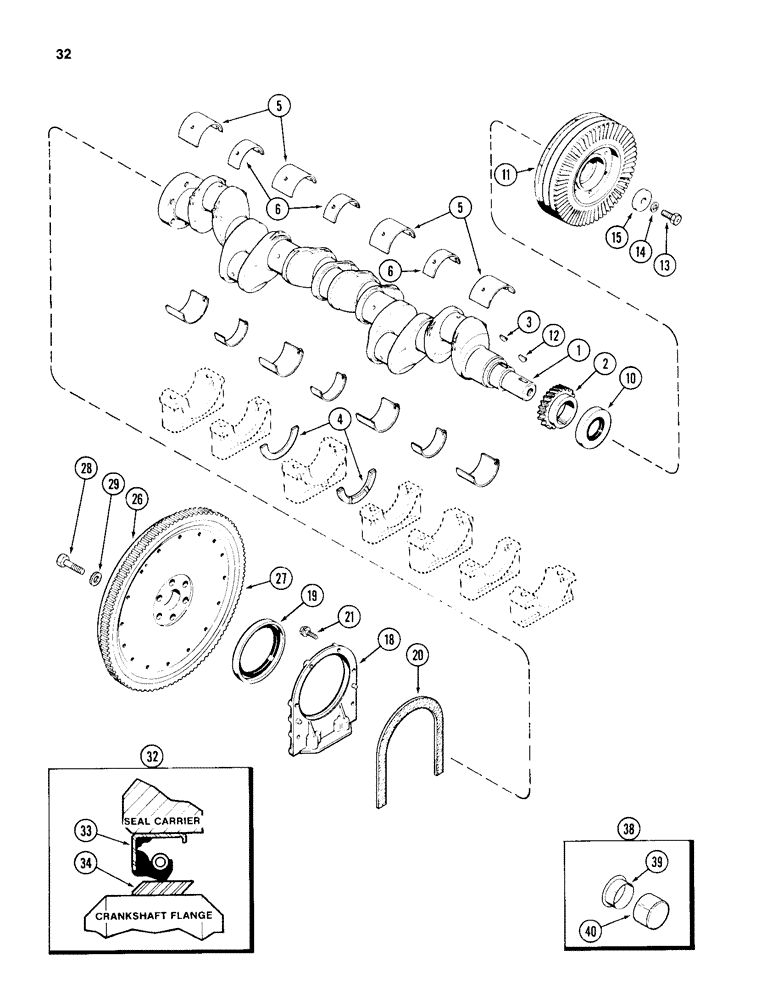

Запчасти Case 1150D (032) - CRANKSHAFT AND FLYWHEEL, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A166117

CRANKSHAFT

- engine, 0.010 inch undersize (0.254 mm)

1шт.

1

A154305

CRANKSHAFT

ASSEMBLY - engine, standard, Includes: Ref. 2 & 3

1шт.

2

A66404

GEAR

- crankshaft timing

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, Standard, 0.156 inch (3.962 mm)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, Oversize, 0.162 inch (4.115 mm)

2шт.

5

A43163

BEARING LINER

INSERT SET - main , wide, standard (Set of 2)

4шт.

5

A43164

BEARING LINER

INSERT SET - main wide, 0.002 inch undersize (0.051 mm) (Set of 2)

4шт.

5

A43165

BEARING LINER

INSERT SET - main , wide, 0.010 inch undersize (0.254 mm) (Set of 2)

4шт.

5

A43166

BEARING LINER

INSERT SET - main wide, 0.020 inch undersize (0.508 mm) (Set of 2)

4шт.

5

A43167

BEARING LINER

INSERT SET - main wide, 0.030 inch undersize (0.762 mm) (Set of 2)

4шт.

6

A43158

BEARING LINER

INSERT SET - main , narrow, standard (Set of 2)

3шт.

6

A43159

BEARING LINER

INSERT SET - main narrow, 0.002 inch undersize (0.051 mm) (Set of 2)

3шт.

6

A43160

BEARING LINER

INSERT SET - main , narrow, 0.010 inch undersize (0.254 mm) (Set of 2)

3шт.

6

A43161

BEARING SET

INSERT SET - main narrow, 0.020 inch undersize (0.508 mm) (Set of 2)

3шт.

6

A43162

BEARING LINER

INSERT SET - main narrow, 0.030 inch undersize (0.762 mm) (Set of 2)

3шт.

10

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front

1шт.

11

A65125

PULLEY

- fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- hex, 5/8 NF x 1-1/2 inch

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A156428

WASHER

- pulley

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear (See Ref 32)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex Sems, 3/8 NC x 1-1/4 inch

6шт.

26

A60508

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 27

1шт.

27

A27920

GEAR

starter ring

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- 5/8 NF x 1-1/2 inch (Grade 8)

6шт.

Use 25331R1, or if shoulder bolt is required, use A11549 04/24/96

1шт.

29

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

32

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 33 & 34

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Reference No. A65871), wear kit

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - wear (Reference No. A65872), seal kit

1шт.

38

A154684

SLEEVE

WEAR SLEEVE KIT - crankshaft pulley, seal, Includes: Ref. 39 & 40

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - wear (Reference No. A151704), seal kit

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL - installation (Reference No. A154819), wear seal kit

1шт.
