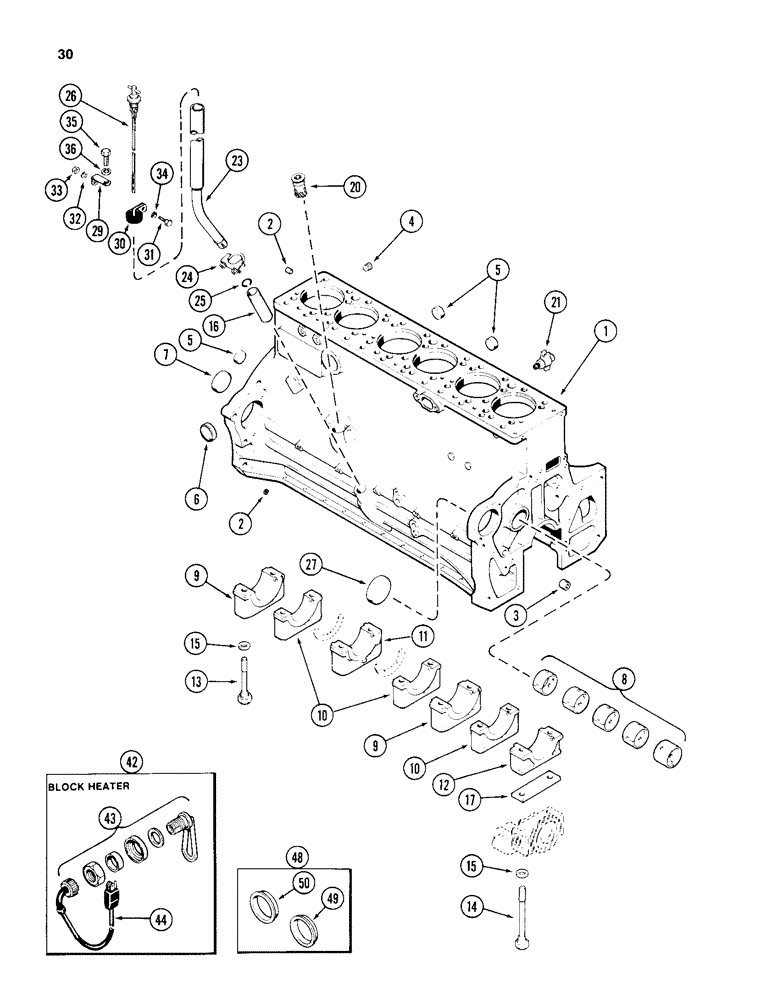

Запчасти Case 1150D (030) - CYLINDER BLOCK, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

A152986

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, Includes: Ref. 1 - 17,camshaft, crankshaft and bearings, piston assembly, connecting rods and bearings and timing gears) NA ONLY

1шт.

AR152986

ENGINE, EXCHANGE

Short, NA Only

1шт.

AC152986

CORE-ENGINE

Short, NA Only

1шт.

AR77834

REMAN-BASIC ENGINE

Return Number, For N.A. Only

1шт.

AC77834

CORE-BASIC ENGINE

Short, NA Only

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66526), Includes: Ref. 2 - 17

1шт.

2

221-1849

PLUG

- oil passage, socket head, 1/8 inch PT

5шт.

3

221-1843

PLUG

- oil passage, socket head, 3/8 inch PT

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- water passage, socket head, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water passage, cup type, 1-3/8 inch (35 mm)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, cup type, 2 inch (51 mm)

1шт.

7

A24361

PLUG

- camshaft hole, cup type, 2-3/8 inch (60 mm)

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (Fig. 29)

1шт.

9

A185063

CAP

- main bearing, wide (rear and intermediate) (replaced A154398)

2шт.

10

A154390

CAP

- main bearing, narrow (intermediate) (replaced A154397)

3шт.

11

A154392

CAP

- main bearing, wide (thrust)

1шт.

12

A154389

CAP

- main bearing, wide (front)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps, 5/8 NC x 5 inch

12шт.

14

A66949

STEP BOLT

BOLT - front bearing cap, 5/8 NC x 7-1/4 inch

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts

14шт.

16

A34540

TUBE

- oil filler and dipstick

1шт.

17

A58859

SHIM,.005" Thk

Oil pump (0.127 mm) .005" Thk

1шт.

20

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

21

A23656

COCK, DRAIN

DRAIN - water

1шт.

23

A155590

TUBE

- extension, dipstick and oil filler

1шт.

24

L47766

CLAMP

- tube

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O -RING - tube

1шт.

26

A155634

DIPSTICK

ASSEMBLY - oil level

1шт.

27

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump opening, cup type, 3-1/4 inch (83 mm)

1шт.

29

A65120

BRACKET

-, Serial Range: tube-manifold

1шт.

30

D30474

CLAMP

-, Serial Range: tube-manifold

1шт.

31

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

25-104

NUT,1/4"-20, G5

1шт.

34

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

42

A155436

RESISTOR

HEATER ASSEMBLY - engine block, Includes: Ref. 43 - 44

1шт.

43

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block & sleeve kit

1шт.

44

A44813

CABLE EXTENSION

CORD ASSEMBLY - 12 inch (305 mm) long, block heater & sleeve kit

1шт.

48

A44006

SLEEVE

KIT - block heater, Includes: Ref. 49 & 50

1шт.

49

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch (53 mm) diameter hole (Reference No. A44007) 10, block heater & kit

1шт.

49

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch (53 mm) diameter hole (Reference No. A44007) 10, block heater & kit

1шт.

50

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8 inch (54 mm) diameter hole (Reference No. A44008), block heater & kit

1шт.
