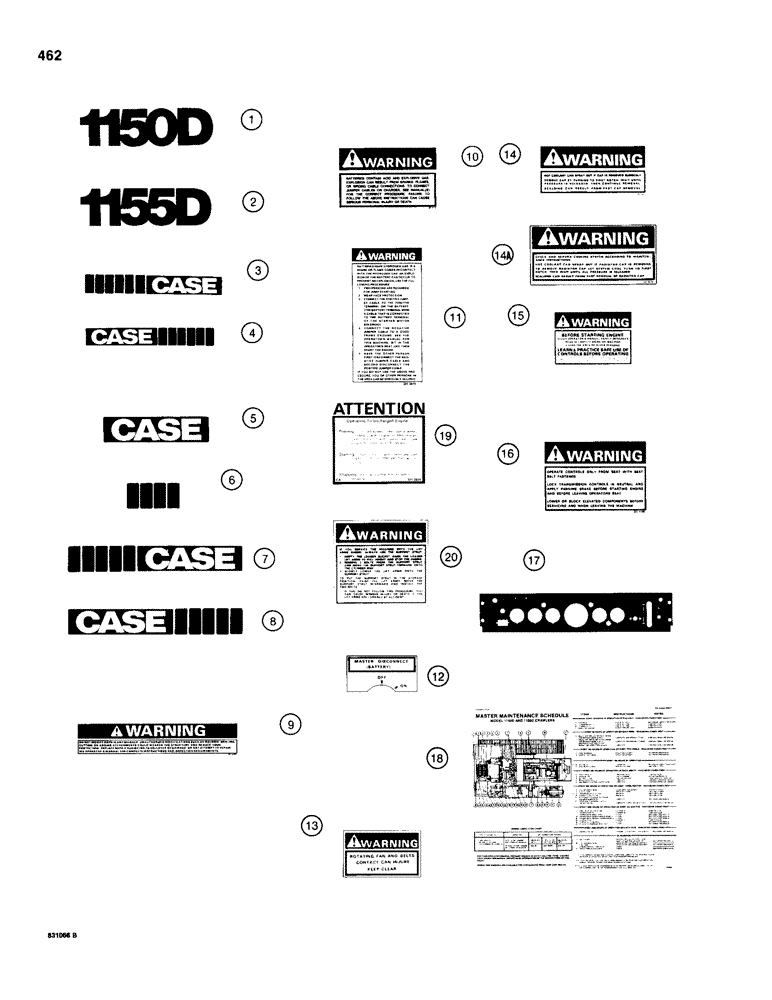

Запчасти Case 1150D (462) - DECALS (09) - CHASSIS/ATTACHMENTS

R47233

DECAL

KIT - decal, includes instruction sheet, also includes Refs. on Fig. 464, Includes: Ref. 1 -20

1шт.

1

R48418

DECAL

- 1150D, dozer and drawbar models

2шт.

2

R49135

DECAL

- 1155D, loader models

2шт.

3

R48429

DECAL

- Case, with treads, side shield, right-hand

1шт.

4

R48430

DECAL

- Case, with treads, side shield, left-hand

1шт.

5

R48428

DECAL

- Case, rear

1шт.

6

R48427

DECAL

- four treads, rear

2шт.

7

R48432

DECAL

- Case, with treads, loader lift frame, right-hand

1шт.

8

R48431

DECAL

- Case, with treads, loader lift frame, left-hand

1шт.

9

321-4192

DECAL

- Warning, ROPS modification

1шт.

10

321-6714

DECAL

- Warning, batteries contain acid and explosive gas, replaces all previous battery warning decals

2шт.

11

321-5973

DECAL

- Warning, batteries have hydrogen gas, no longer used, replace with Ref. 10 decal

2шт.

12

321-2392

DECAL

- Master Disconnect

1шт.

13

321-3596

DECAL

- Warning, Rotating Fan and Belts

2шт.

14

321-5734

DECAL

- Warning, hot coolant can spray out, no longer used, replace with Ref. 14A decal

1шт.

14a

321-6672

DECAL

- Warning, check and service cooling system

1шт.

15

321-3705

DECAL

- Warning, Before Starting Engine

1шт.

16

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

17

R48417

DECAL

- instrument panel

1шт.

18

R46513

DECAL

- Master Maintenance Schedule

1шт.

19

321-2605

DECAL

- Operating Turbocharged Engine

1шт.

20

321-6488

DECAL

- Warning, if you service the machine with the lift arms raised

2шт.
