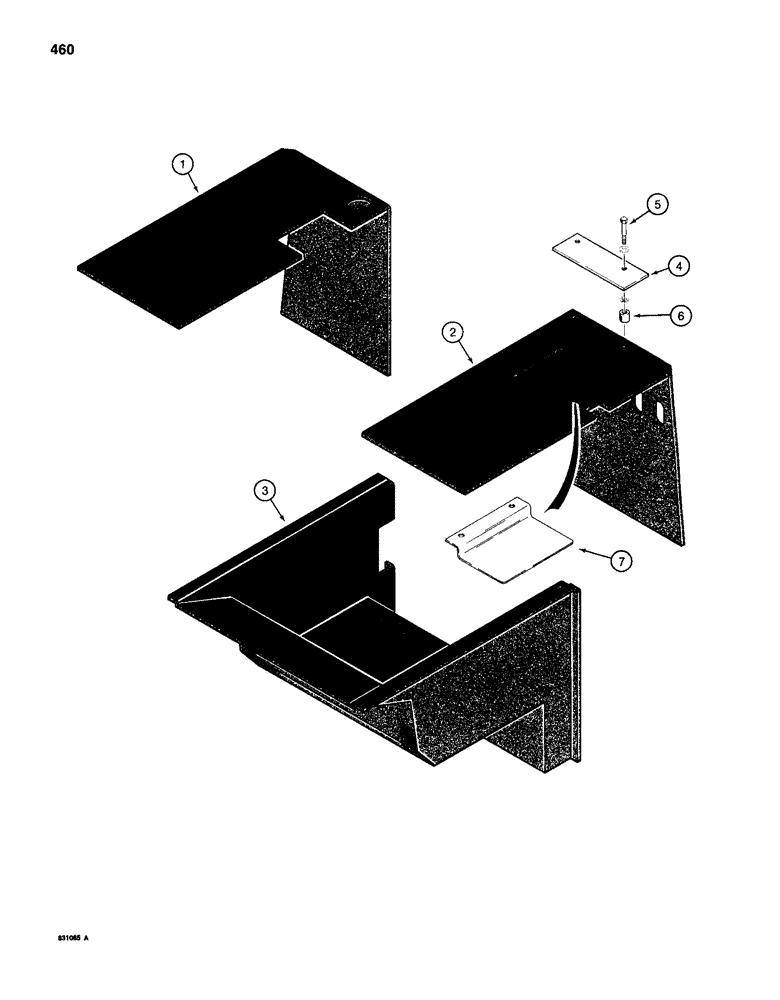

Запчасти Case 1150D (460) - CAB NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

1

R47876

PAD

- fuel tank

1шт.

2

R47875

PAD

- hydraulic reservoir frame

1шт.

3

R47877

PAD

- seat

1шт.

4

R43864

PLATE

- mounting, control decals

1шт.

5

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - flange head, 3/8" - 16 NC x 1-1/4", grade 8, Teflon coated

2шт.

6

A28893

BUSHING

- mounting plate

2шт.

7

R53706

PLATE ASSY.

PLATE - winch operation decal mounting, includes decals, if used, see Hyster Winch Parts Catalog D1251 for additional winch control parts and mounting

1шт.
