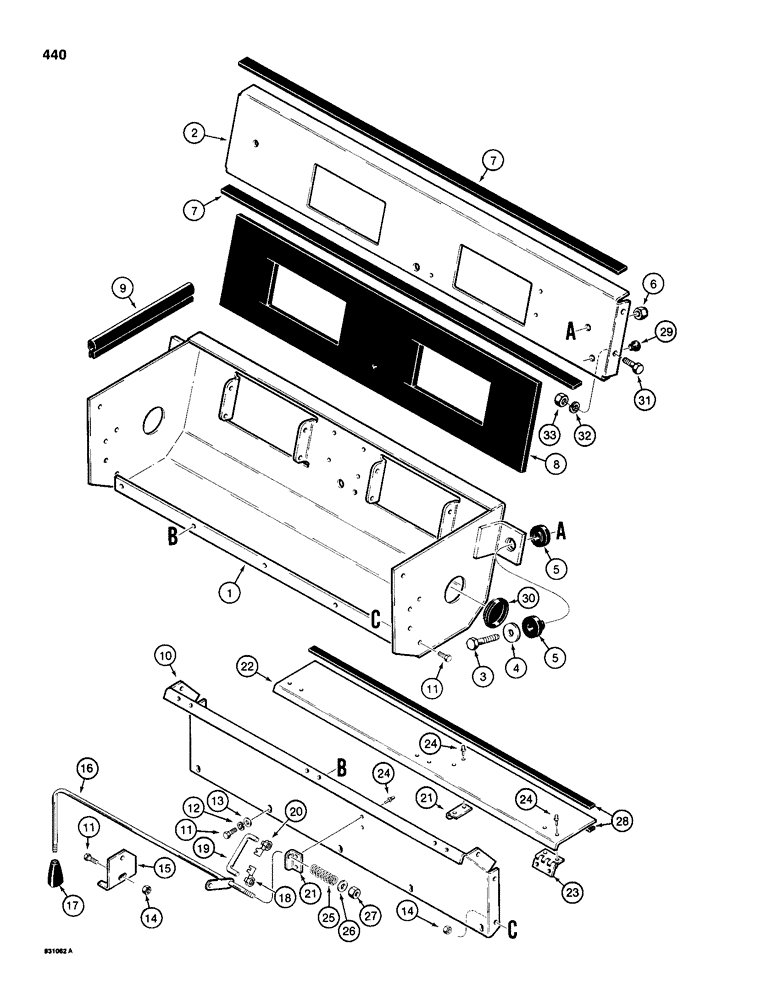

Запчасти Case 1150D (440) - CAB, BLOWER HOUSING AND AIR FLOW CONTROL (09) - CHASSIS/ATTACHMENTS

1

R44079

HOUSING

- blower

1шт.

2

R47838

PANEL

- front

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

4

195-137

WASHER,13/32" x 1 1/8" x .180"

- flat, 3/8"

2шт.

5

R44084

BUSHING

INSULATOR - rubber

4шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

7

R44282

SEAL

- front panel, top and bottom

2шт.

8

R44083

INSTRUCTION

- blower housing, front

1шт.

9

REF

INSTRUCTION

SEAL - rubber, housing, 8-1/4" (210 mm) long, cut from D80646

2шт.

10

R44792

PANEL

- blower, rear

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

13

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

5шт.

14

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated, replaces lock washer and regular hex nut used in production on some models

7шт.

15

R44799

BRACKET

- adjustment lever, air flow control

1шт.

16

R44795

LEVER

- adjustment, air flow control

1шт.

17

F64341

KNOB

- adjustment lever

1шт.

18

F43349

CLIP

- adjustment, Serial Range: lever-rod

1шт.

19

R44798

THREADED ROD

ROD - air flow control

1шт.

20

F43350

CLIP

-, Serial Range: rod-bracket

1шт.

21

R44794

SUPPORT

BRACKET - panel, air flow control

2шт.

22

R44793

PANEL

- air flow control

1шт.

23

F64065

HINGE

- panel

3шт.

24

151-546

RIVET,Pop, 1/8" x 5/16"

POP RIVET - 1/8" diameter x 5/16"

16шт.

25

F62245

SPRING

- adjustment lever

1шт.

26

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

27

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

1шт.

28

REF

INSTRUCTION

SEAL - foam, air flow control panel, 23-5/8" (600 mm) long, cut from A42905 bulk

1шт.

29

353-700

BUSHING

GROMMET - 3/8" diameter hole

1шт.

30

353-588

PLUG,1 3/4"

- button, 1-3/4" (44 mm) diameter

2шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

4шт.

34

REF

INSTRUCTION

DECAL - fresh air, recirc. air, Fig. 464, not shown

1шт.

D80646

SEAL

- rubber, bulk roll, 50 ft (15.2 m) long

1шт.

A42905

FOAM

SEAL - foam, bulk roll, 50 ft (15.2 m) long

1шт.
