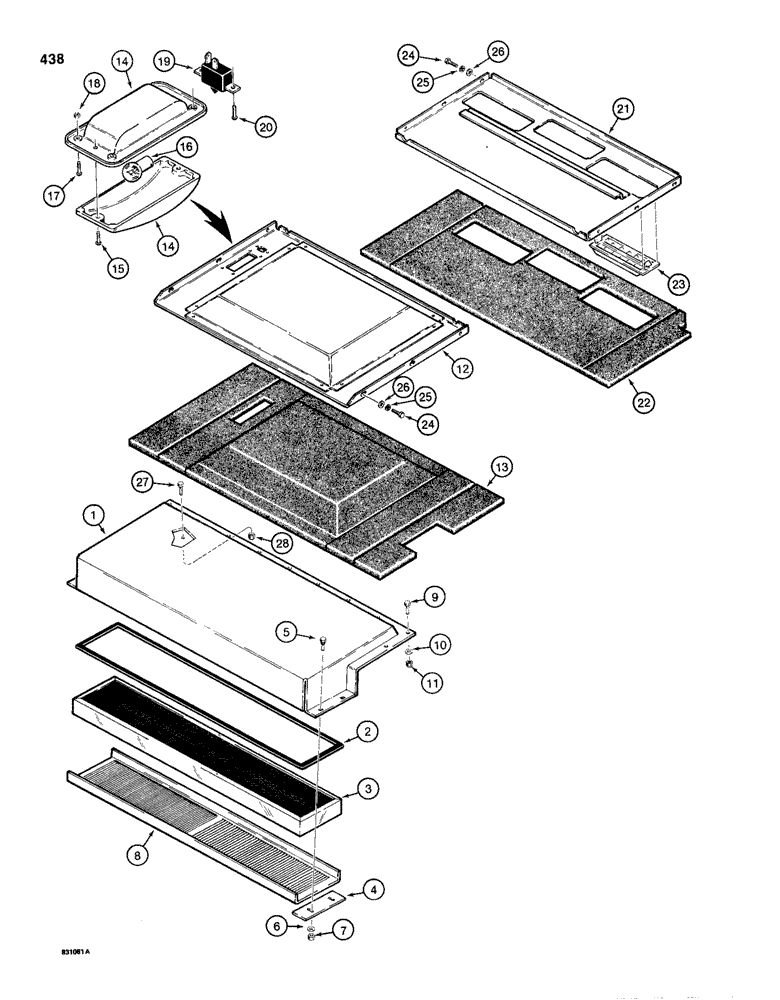

Запчасти Case 1150D (438) - CAB, AIR FILTER AND INSIDE ROOF COVERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R44782
HOUSING
- filter
1шт.
2
F63669
SEAL
- rubber, housing
1шт.
3
F64318
AIR FILTER
FILTER - air
1шт.
4
R44783
LARGE PLATE
PLATE - retainer, filter
2шт.
5
111-110
SCREW,Short NK, 1/4"-20 x 7/8", G2
BOLT, CARRIAGE, Short NK, 1/4"-20 x 7/8", G2
4шт.
6
195-102
WASHER,1/4"
- flat, , plated 1/4"
4шт.
7
86625061
NUT,1/4"-20, GB
NUT - hex, self-locking, 1/4" - 20 NC, plated
4шт.
8
R46136
SIEVE
LOUVER - filter
1шт.
9
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
11шт.
10
F42778
WASHER
- special
11шт.
11
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated
11шт.
12
R47844
COVER
- rear, heater lines
1шт.
13
R47845
NOISE PROTECTION
PAD - rear cover
1шт.
14
F89772
LAMP
- dome, replace 12 volt bulb in this service lamp with a 24 volt bulb, Fig. 16, Includes: Ref. 15
1шт.
15
173-297
SCREW,Phil Rnd Hd, #8 - 32 x 1/4"
MACHINE SCREW - No. 8 - 32 NC x 1/4"
2шт.
16
D71459
LAMP
BULB - dome lamp, 24 volt, No. 1591
1шт.
17
171-238
SCREW,Sl Flat Hd, #8 - 32 x 5/8"
MACHINE SCREW - flat head slotted, No. 8 - 32 NC x 5/8", plated
4шт.
19
D75876
IGNITION SWITCH
SWITCH - on-off, dome lamp
1шт.
20
182-522
SCREW,Cross Pan Hd, #6 - 32 x 1/2"
MACHINE SCREW - Phillips head, No. 6 - 32 NC x 1/2", plated
2шт.
21
R47840
COVER
- front, for louvers
1шт.
22
R47841
NOISE PROTECTION
PAD - front cover
1шт.
23
F98149
GUARD
LOUVER - air vent
3шт.
24
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
10шт.
25
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
10шт.
26
195-518
WASHER,1/4", SAE
- flat, 1/4", plated
10шт.
27
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
28
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated
2шт.
345-44
ADHESIVE
- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces
1шт.
Выбрано товаров: 29
