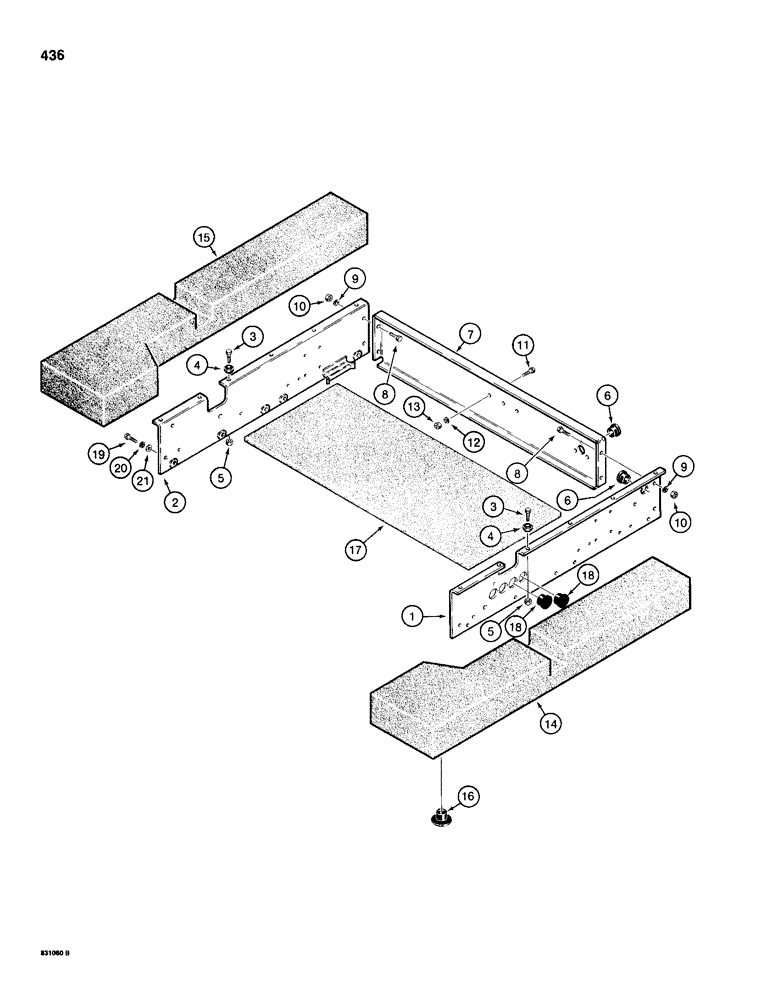

Запчасти Case 1150D (436) - CAB, ROOF PADS AND ACCESSORY MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

R47834

PANEL

BRACKET - mounting, right-hand

1шт.

2

R47836

PANEL

BRACKET - mounting, left-hand

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

4

F42778

WASHER

- special

12шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

12шт.

6

F64486

GROMMET

- 1" (25 mm) diameter hole, one used on loader models, two used on dozer and drawbar models

1-2шт.

7

R44077

D PANEL

BRACKET - windshield wiper mounting, front

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

14

R48453

PAD

- vinyl covered, right-hand

1шт.

15

R48454

PAD

- vinyl covered, left-hand

1шт.

16

R37161

RETAINER

- headliner pads

6шт.

17

R44171

NOISE PROTECTION

PAD - foam, heat barrier, attaches to cab roof above heater and/or air conditioning cores

1шт.

18

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16" hole size, used on models without air conditioning, if used

2шт.

19

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

21

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

10шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
