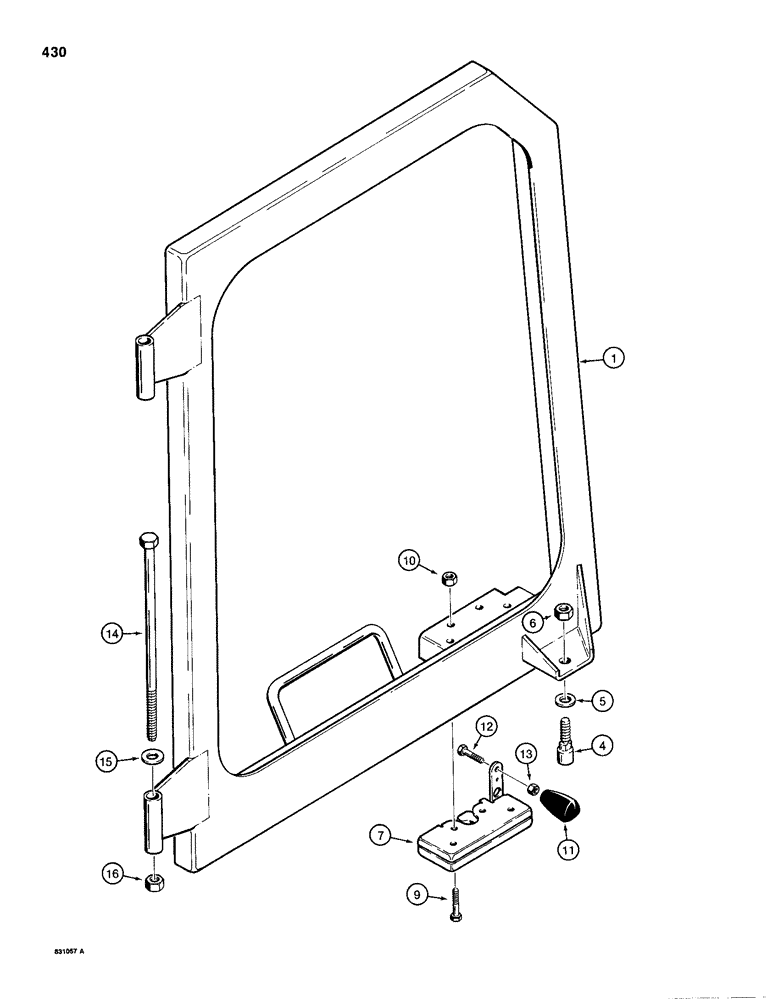

Запчасти Case 1150D (430) - CAB DOOR WINDOW (09) - CHASSIS/ATTACHMENTS

1

N8704

DOOR

FRAME - door window, right-hand

1шт.

2

N8705

DOOR

FRAME - door window, left-hand, not shown

1шт.

4

F45073

PIN

STRIKER - on window frame, outside

2шт.

5

195-105

WASHER,7/16"

- flat, , plated 7/16"

2шт.

6

131-595

NUT,7/16"-14

NUT - hex, self-locking, 7/16" - 14 NC, plated, special

2шт.

7

F44925

LATCH

- window, right-hand

1шт.

8

F45136

LATCH ASSY.

LATCH - window, left-hand, not shown

1шт.

9

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

10

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

8шт.

11

F64341

KNOB

- latch release, three-sided, replaces round knob used in production

2шт.

12

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

14

113-529

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

4шт.

15

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.
