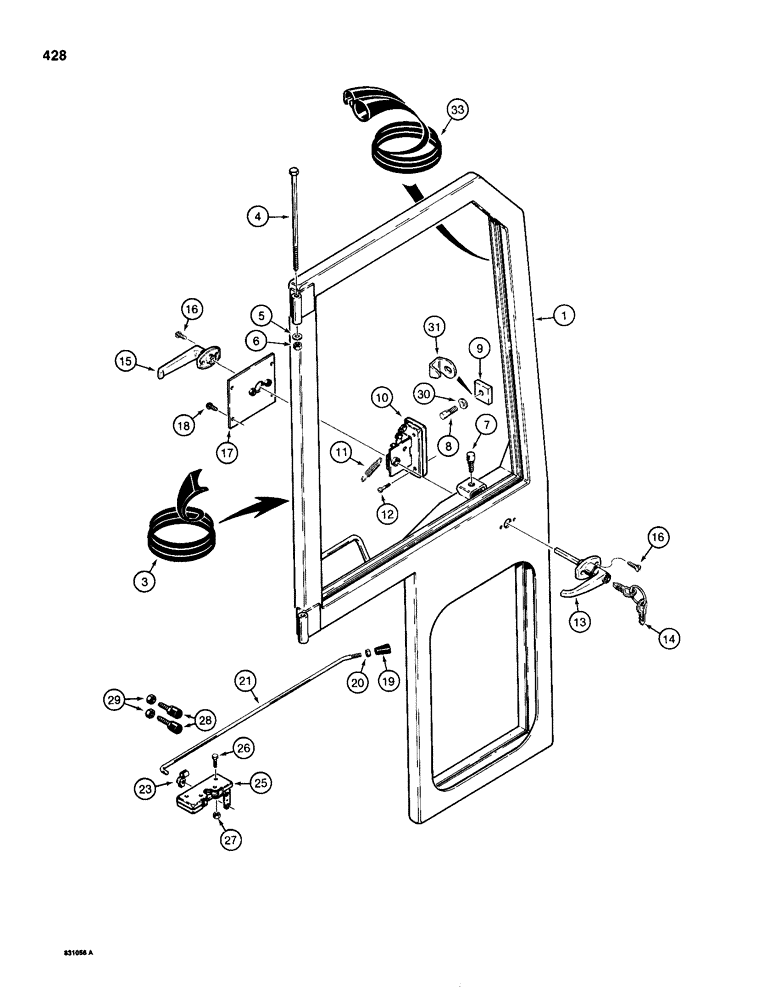

Запчасти Case 1150D (428) - CAB DOORS (09) - CHASSIS/ATTACHMENTS

1

N8702

DOOR

- right-hand

1шт.

2

N8703

DOOR

- left-hand, not shown

1шт.

3

REF

INSTRUCTION

SEAL - around edge of door frame, each 14 ft (427 cm) long, order two or more pieces of N6453, see below

2шт.

4

113-529

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

4шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

7

F45073

PIN

STRIKER - window latch, on door frame

2шт.

8

F45073

PIN

STRIKER - door latch, on cab frame

2шт.

9

N6422

LARGE PLATE

PLATE - square, tapped, striker retaining

2шт.

D88776

LATCH ASSY.

LATCH ASSEMBLY - door, right-hand, Includes: Ref. 10 & 11

1шт.

D88774

LATCH ASSY.

LATCH ASSEMBLY - door, left-hand, not shown, Includes: Ref. 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

LATCH - door

1шт.

11

D88775

SPRING

- right-hand and left-hand latches

1шт.

12

171-240

SCREW,Cross Flat Hd, 1/4" - 20 x 1", W/ Nylon Insert

MACHINE SCREW - flat head, Phillips, self-locking, 1/4" - 20 NC x 1"

8шт.

13

D88771

LOCK

HANDLE - door, outside, includes keys, Includes: Ref. 14

2шт.

14

D88772

KEY

- door handle, set of two on a ring

1шт.

Description states, "Two on a Ring". This is not correct, "Only one Key"

1шт.

15

D88773

HANDLE

- door, inside

2шт.

16

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

MACHINE SCREW - oval head, Phillips, No. 10 - 24 NC x 5/8", plated

8шт.

17

N8706

LARGE PLATE

COVER - inside door latch

2шт.

18

182-577

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/8", plated

8шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

21

N8713

ROD

- door release

2шт.

22

F43349

CLIP

- rod attaching, left-hand, not shown

1шт.

23

F43350

CLIP

- rod attaching, right-hand

1шт.

19

F64341

KNOB

- door release rod, three-sided, replaces round knob used in production

2шт.

24

F45136

LATCH ASSY.

LATCH - door retaining, left-hand, not shown

1шт.

25

F44925

LATCH

- door retaining, right-hand

1шт.

26

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

27

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

8шт.

28

N7673

BUMPER

- rubber

4шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

30

N13017

WASHER

BELLEVILLE WASHER - door striker

1шт.

31

R51756

PROTECTOR

GUARD - door striker, if used

1шт.

32

REF

INSTRUCTION

SEAL - rubber, window frame, attaches to door frame, each 76" (1930 mm) long, cut from F43086 seal

2шт.

N6453

SEAL,138 Inches Long

- bulk, 138" (3505 mm) long, order two or more pieces as needed

1шт.

F43086

SEAL

- bulk, 100 ft (3048 cm) long

1шт.
