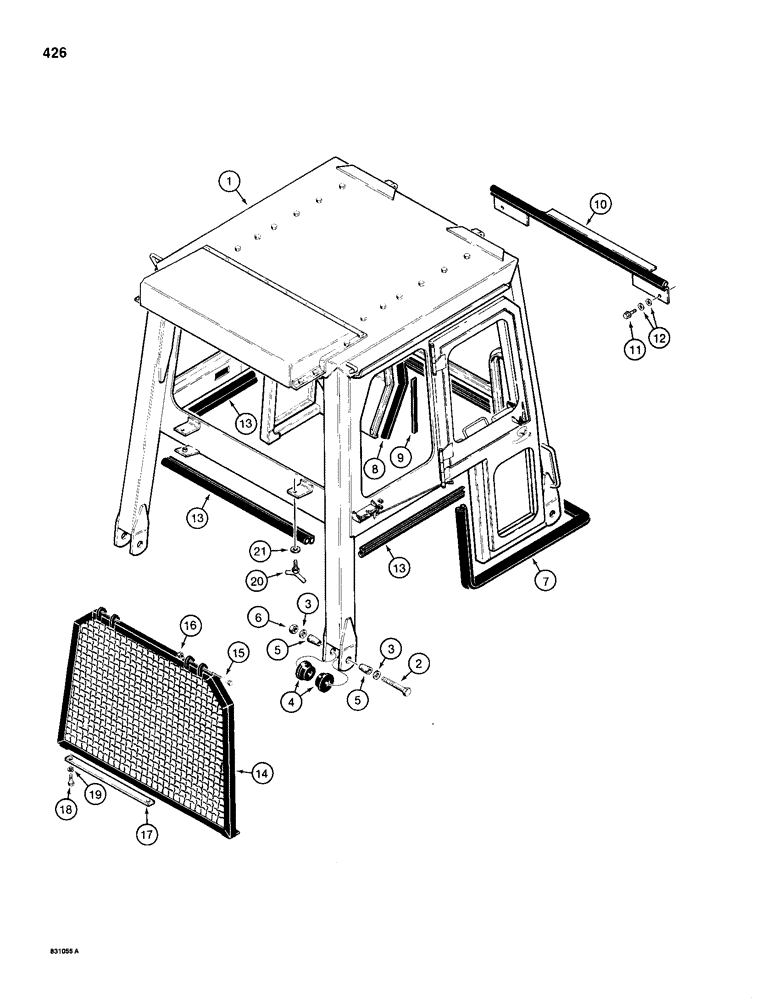

Запчасти Case 1150D (426) - CAB FRAME MOUNTING AND REAR SCREEN (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - ROPS, machinery item, see page 2 for ordering

1шт.

2

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened

8шт.

4

F44214

MOUNTING PARTS

INSERT - rubber

8шт.

5

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

- steel

8шт.

6

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

N8710

SEAL

- front of cab and door frame, one per side

2шт.

8

REF

INSTRUCTION

SEAL - front, dozer and drawbar models, 86" (2184 mm) long, cut from D88783

1шт.

9

REF

INSTRUCTION

SEAL - front, one per side, loader models only, 30" (762 mm) long, cut from D88783

2шт.

10

N8714

PANEL ASSY.

PANEL - filler, with seals, above instrument panel, loader models only

1шт.

11

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Loader panel Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

12

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

13

REF

INSTRUCTION

SEAL - cab sides and rear, 12 ft (366 cm) total length, cut from D80643

1шт.

14

N6440

SCREEN - rear window

1шт.

15

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

17

N7662

BAR

- screen mounting, lower

1шт.

18

163-34

MACHINE SCREW - slotted hex head, 3/8" - 16 NC x 1", plated

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

N8712

BOLT

BOLT - wing-type, special

2шт.

21

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

D88783

RUBBER MOUNTING

SEAL - bulk roll, 50 ft (1524 cm) long

1шт.

D80643

SEAL

- bulk roll, 50 ft (1524 cm) long

1шт.

N9111

PLATE

valve cover

1шт.

N9112

BAR

valve cover

1шт.
