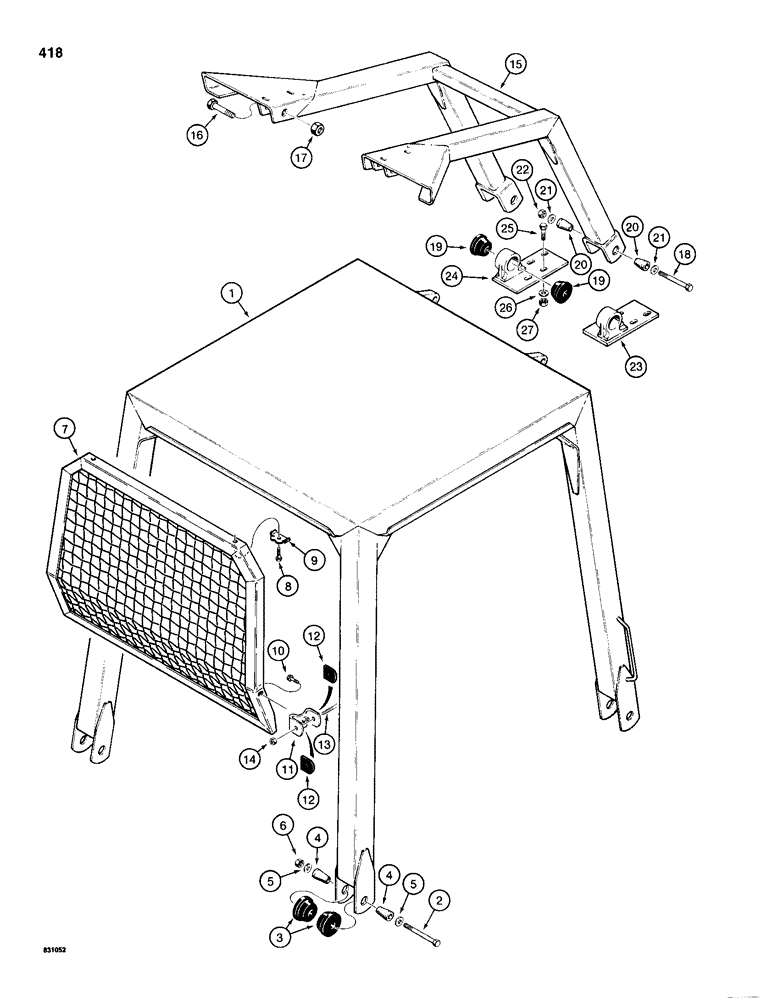

Запчасти Case 1150D (418) - ROLL OVER PROTECTIVE STRUCTURE - CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, see Fig. 2 for ordering

1шт.

2

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

3

F44214

MOUNTING PARTS

INSULATOR - rubber

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

- steel

8шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened

8шт.

6

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

R46656

BAFFLE

SCREEN - rear

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

9

R38226

LOCK WASHER

- special

2шт.

10

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

11

R46663

ANCHOR

CLAMP - rear screen mounting

2шт.

12

R40074

CUSHION ASSY.

SPACER - rubber

4шт.

13

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex head, 1/2" - 13 NC x 5-3/4", plated

2шт.

14

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

15

R41347

PROTECTOR

GUARD - brush sweep

1шт.

16

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

17

131-380

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1" - 8 NC, plated

2шт.

18

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

19

F44212

MOUNTING PARTS

INSULATOR - rubber

4шт.

20

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- rubber

4шт.

21

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened

4шт.

22

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

2шт.

23

R41320

GUARD

BRACKET - right-hand on loader models, left-hand on dozer models, dozer mounting shown

1шт.

24

R41321

GUARD

BRACKET - left-hand on loader models, right-hand on dozer models, dozer mounting shown

1шт.

25

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

6шт.

27

129-108

NUT,3/4"-10, G5

6шт.
