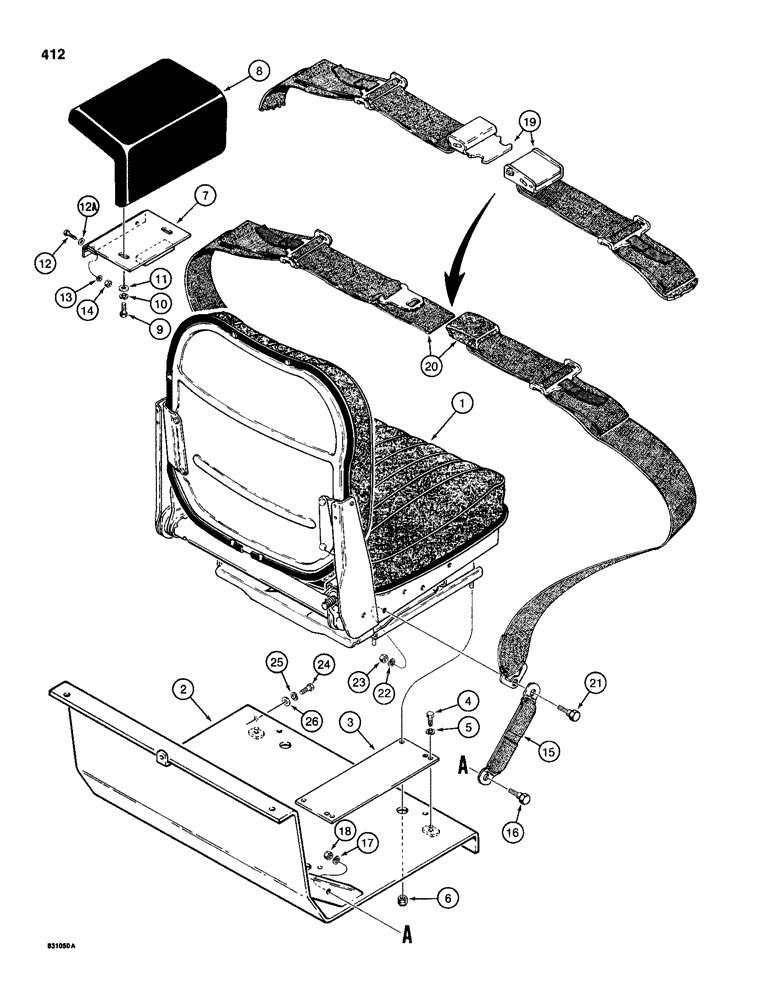

Запчасти Case 1150D (412) - SUSPENSION SEAT AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

R49353

SEAT

SUSPENSION SEAT - parts list Fig. 414

1шт.

2

R47880

LARGE PLATE

SUPPORT - seat mounting

1шт.

3

R50967

LARGE PLATE

PLATE - seat mounting

2шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

7

R34710

SUPPORT

- armrest

2шт.

8

R48420

ARMREST

- suspension seat

2шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

12a

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

R45816

SAFETY BELT ,1.80" W

Extension 1.80" W

2шт.

16

F42236

STEP BOLT

SHOULDER BOLT - 7/16" - 20 NF x 1-1/4"

2шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

19

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

20

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, if used

1шт.

21

R45855

BOLT

SHOULDER BOLT - 7/16" - 20 NF x 1-1/2"

2шт.

22

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

26

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.
