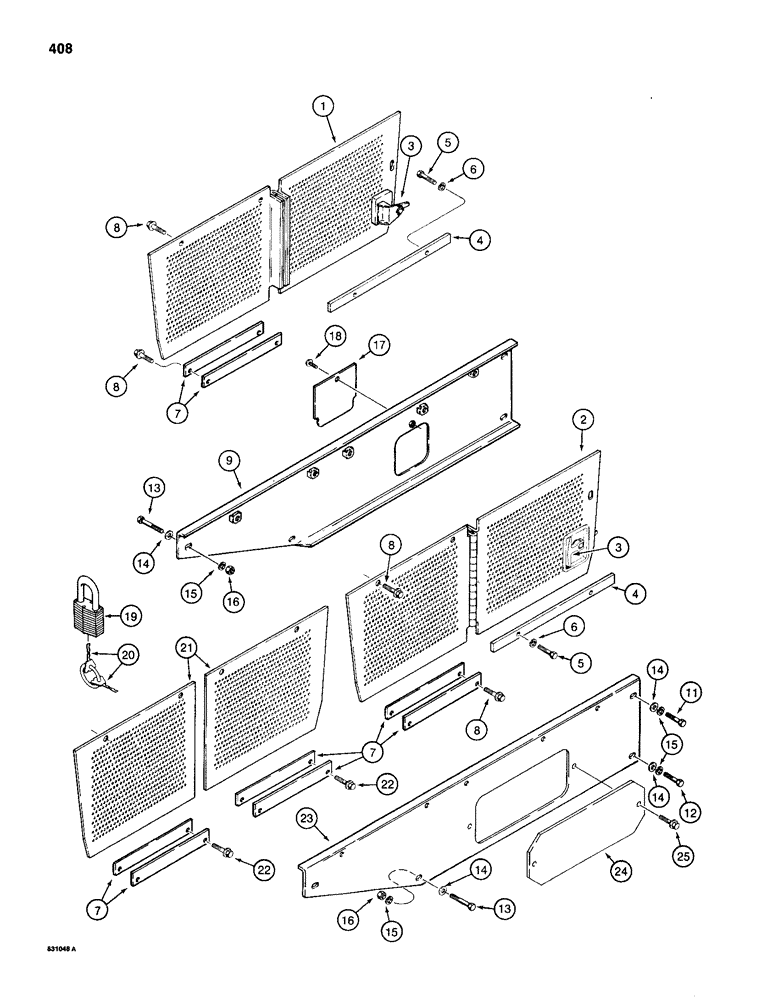

Запчасти Case 1150D (408) - SIDE SHIELDS - LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R47809

SHIELD

- side, hinged, left-hand, no longer used, replace with bolt-on side shields, Ref. 21

1шт.

2

R47810

SHIELD

- side, hinged, right-hand, no longer used, replace with bolt-on side shields, Ref. 21

1шт.

3

S225099

LATCH

- R47809 and R47810 side shields, if used

1шт.

4

R40862

LARGE PLATE

STRIP - side shield, long, front, used with hinged side shields only, if used

2шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

R34023

STRIP

- side shield, short, used in rear position only with hinged side shields (Ref. 1 and 2), used in front and rear positions with bolt-on side shields (Ref. 21)

4-8шт.

8

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

8шт.

9

R47973

SHIELD

- lower, left-hand

1шт.

R47973 shield has 4 cage # 70996 and 4 nuts of part no. 224-2808 located on back side.

1шт.

ALSO HAS 1 PC 25-106 (3/8-16) NUT WELDED TO THE UPPER AREA OF THE SQUARE COVER OPENING.

1шт.

10

R35354

SHIELD

- lower, right-hand, without engine oil filter access, if used, not shown

1шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

12

113-490

BOLT,Hex, 1/2" - 13 x 7/8", Gr 8, Full Thd

2шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

14

195-106

WASHER,1/2"

- flat, , plated 1/2"

8шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

17

R47982

LARGE PLATE

COVER - access, fuel sediment bowl

1шт.

18

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated

1шт.

19

D93753

PADLOCK

- side shields, includes keys, if used, Includes: Ref. 20

2шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

R50554

SHIELD

- side, bolt-on, front and rear, both sides

4шт.

22

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

16шт.

23

R50556

SHIELD

- lower, right-hand, with engine oil filter access, if used

1шт.

24

R50538

LARGE PLATE

COVER - access, engine oil filters, if used

1шт.

25

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.
