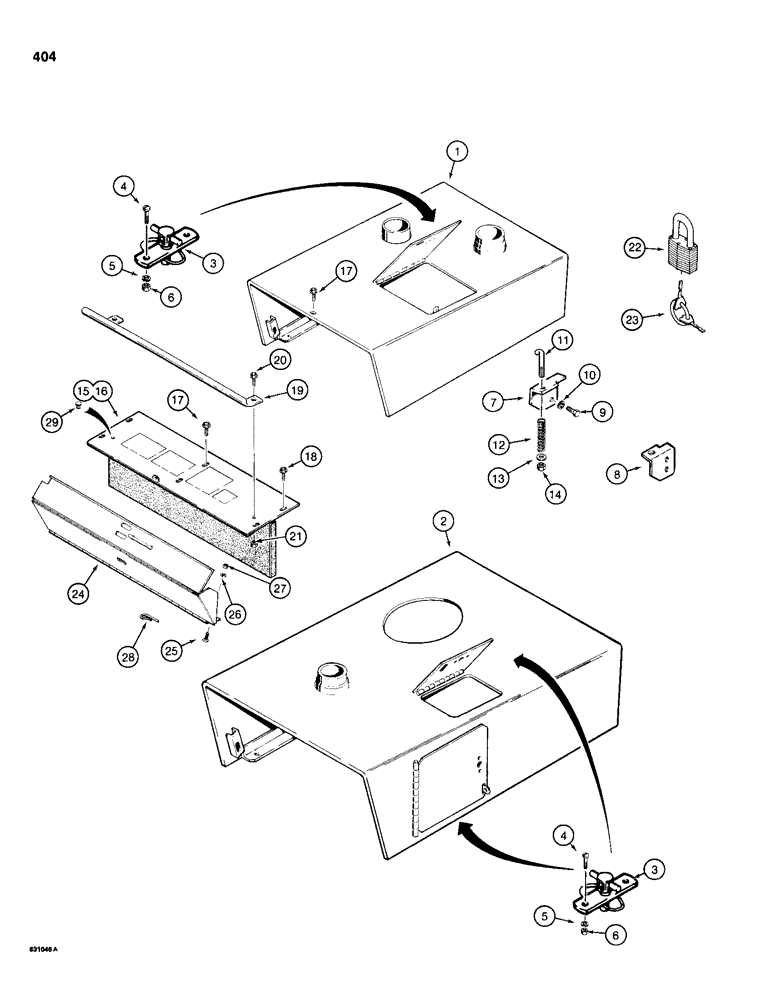

Запчасти Case 1150D (404) - HOOD AND INSTRUMENT PANEL COVER, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R44860

HOOD

- models without turbocharger, if used

1шт.

1

R44861

HOOD

- forestry, models without turbocharger, if used, not shown

1шт.

2

R46062

HOOD

- models with turbocharger, air cleaner access on right-hand side, as shown, if used

1шт.

2

R44845

HOOD

- forestry, models with turbocharger, if used, not shown

1шт.

1

R44863

HOOD

- models without turbocharger, if used, loader models

1шт.

2

R46060

HOOD

- models with turbocharger, air cleaner access on top of hood, not shown, if used, loader models

1шт.

3

L102515

LATCH

FASTENER - access door, all models

1-2шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - No. 10 - 24 NC x 1/2", plated, all models

2-4шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , All models #10

2-4шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, all models

2-4шт.

7

R27284

ANGLE

- J-bolt retaining, left-hand, all models

1шт.

8

R27285

ANGLE

- J-bolt retaining, right-hand, all models

1шт.

9

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

All models Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , All models 1/2"

4шт.

11

D33958

BOLT

- J-type, hood retaining, all models

4шт.

12

F60482

SPRING

- J-type bolt, all models

4шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, all models

4шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, all models

4шт.

15

R49679

COVER

PLATE - hood extension, dozer and drawbar models, includes decals,for noise reduction pad, Fig.422, all models

1шт.

16

R49680

PLATE

- hood extension, loader models, includes decals, for noise reduction pad, Fig. 422, all models

1шт.

17

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , All models Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

18

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated, all models

5шт.

19

R43077

HANDLE

HANDRAIL - hood extension, if used, all models

1шт.

20

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

All models Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

21

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, all models

2шт.

22

D93753

PADLOCK

- access doors and instrument panel cover, includes keys, Includes: Ref. 23, all models

2-3шт.

23

R29555

KEY

- for Master padlock only, all models

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, all models

2шт.

24

R42034

COVER

- instrument panel, if used, all models

1шт.

25

A42923

CARRIAGE BOLT

- 5/16" - 18 NC x 27/32", special, all models

3шт.

26

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, all models

3шт.

27

131-1201

LOCK NUT,5/16"-18, GC

NUT - hex, self-locking, 5/16" - 18 NC, replaces lock washer and regular hex nut used in production on some models, all models

3шт.

28

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Use to secure instrument panel cover to firewall when not locked, if used, all models

1шт.

29

353-403

PLUG,Dome, .437" hole, Nylon

Use in hand rail holes on hood extension plate, cab models only, if used, all models Dome, .437" hole, Nylon

2шт.
