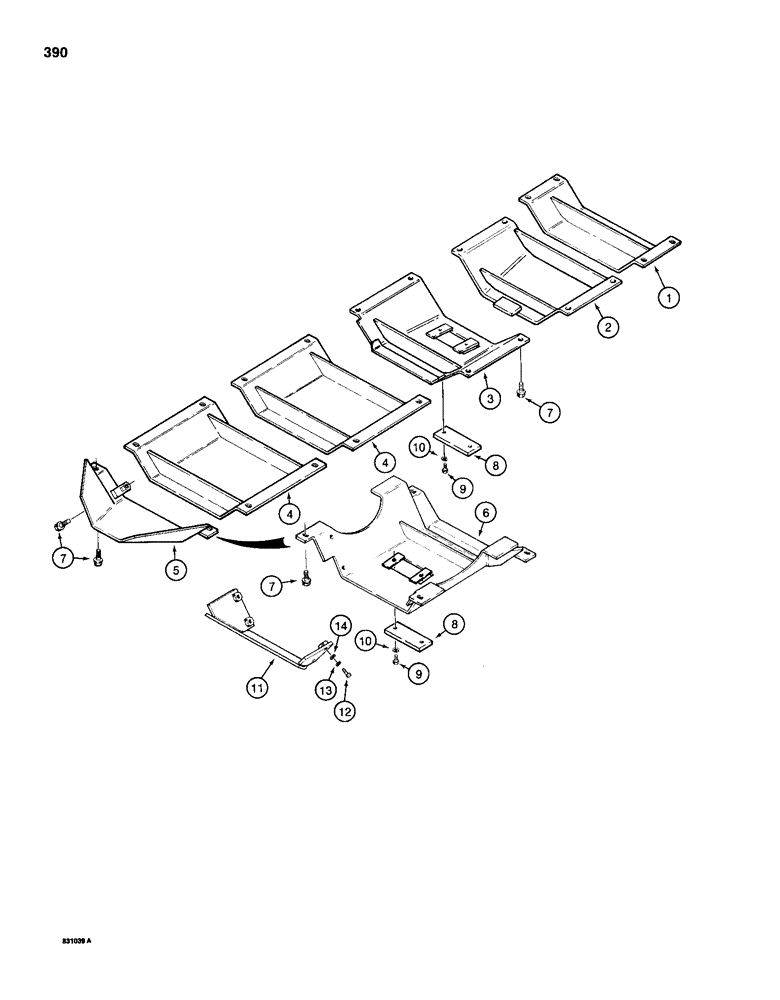

Запчасти Case 1150D (390) - UNDERCARRIAGE GUARDS, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R26803

GUARD ASSY.

GUARD - radiator

1шт.

2

R47161

GUARD

- engine front

1шт.

3

R47164

GUARD

- engine oil pan

1шт.

4

R26797

GUARD

- torque converter and transmission brake housings

2шт.

5

R26793

GUARD

- rear, transmission, standard, if used, may be replaced with Ref. 6-10

1шт.

6

R49742

GUARD ASSY.

GUARD - rear, transmission, heavy duty, if used

1шт.

7

121-506

FLANGE BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT - hex flange head, 5/8" - 11 NC x 2", grade 8

24шт.

8

R48231

COVER

PLATE - drain cover

1-2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-4шт.

11

R48004

GUARD ASSY.

GUARD - rear, transmission, used on models with Hyster winch and heavy duty transmission guard (Ref. 6)

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.
