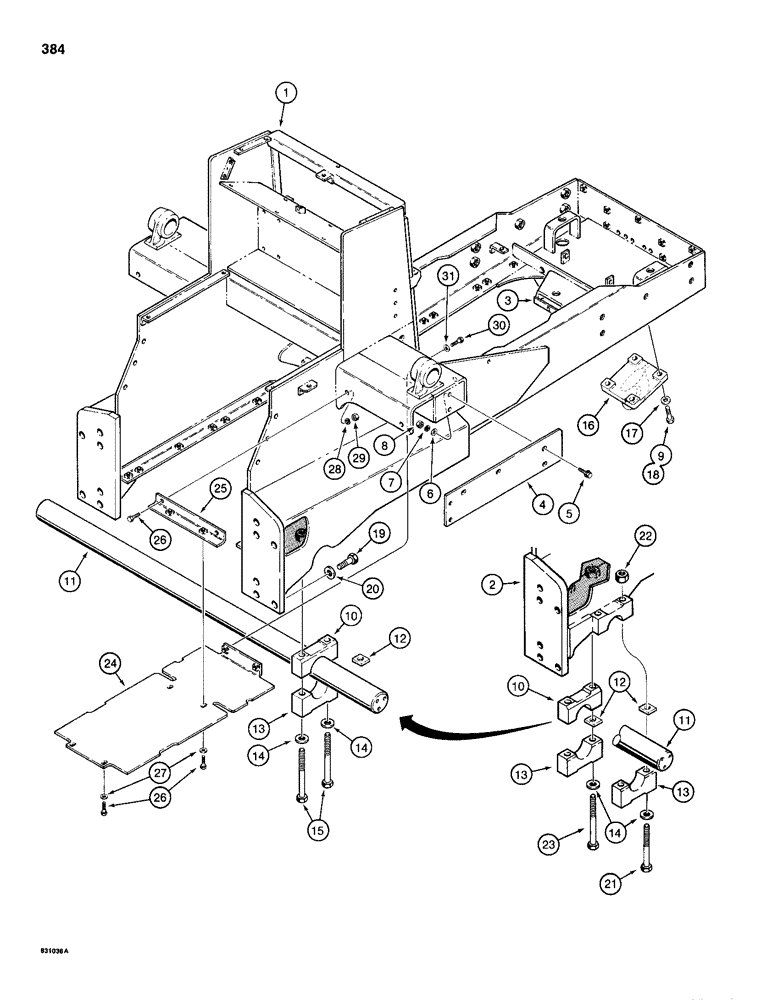

Запчасти Case 1150D (384) - MAIN FRAME, PIVOT SHAFT, AND PULL HOOK, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R50611

FRAME

- engine and main, 62" (1575 mm) gauge dozer and drawbar models

1шт.

2

R50612

FRAME

- engine and main, 74" (1880 mm) gauge LGP dozer models

1шт.

2

R50619

FRAME

- engine and main, 74" (1880 mm) gauge wide track dozer models, not shown, Includes: Ref. 3

1шт.

3

R49525

SUPPORT

BRACKET - radiator support, weld on, all dozer main frames

1шт.

4

R45764

LARGE PLATE

PLATE - side frame

2шт.

5

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated

8шт.

6

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

8шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

9

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used on models without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

10

R26859

BODY

CLAMP - pivot shaft, top, 4 used on 62" (1575 mm) gauge dozer and drawbar models, 2 used on 74" (1880 mm) gauge LGP and wide track dozer models

2-4шт.

11

R26860

SHAFT

- pivot, 62" (1575 mm) gauge dozer and drawbar models

1шт.

11

R31363

SHAFT

- pivot, 74" (1880 mm) gauge LGP and wide track dozer models

1шт.

12

R26802

SPACER

- clamp

4шт.

13

R26857

CLAMP

- pivot shaft, bottom, all models

4шт.

14

D30196

WASHER

- flat, 1", hardened, all models

8шт.

15

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

- hex head, 1" - 8 NC x 9", used on 62" (1575 mm) gauge dozer and drawbar models

8шт.

16

71671

PLATE ASSY.

HOOK - pull, if used

1шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened, used on all models

4шт.

18

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used on models with pull hook Hex, 3/4"-10 x 2", G5

4шт.

19

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC X 2-1/2", grade 8, use with Loctite, final drive housing to main frame

12шт.

20

D30196

WASHER

- flat, 1", hardened

12шт.

21

15-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

- hex head, 1" - 8 NC x 8", used on 74" (1880 mm) gauge LGP and wide track dozer models, outer clamps

4шт.

22

129-110

NUT,1"-8, G5

Used on 74" (1880 mm) gauge LGP and wide track dozer models, outer clamps 1"-8, G5

4шт.

23

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

- hex head, 1" - 8 NC x 9", used on 74" (1880 mm) gauge LGP and wide track dozer models, inner clamps

4шт.

24

R46334

HOOD

GUARD - hydraulic lines, bolts to main frame

2шт.

25

R46325

ANGLE BAR

BRACKET - guard mounting

2шт.

26

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

27

R24718

WASHER

- flat, 1/2", hardened

8шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

30

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

31

R24718

WASHER

- flat, 1/2", hardened

4шт.
