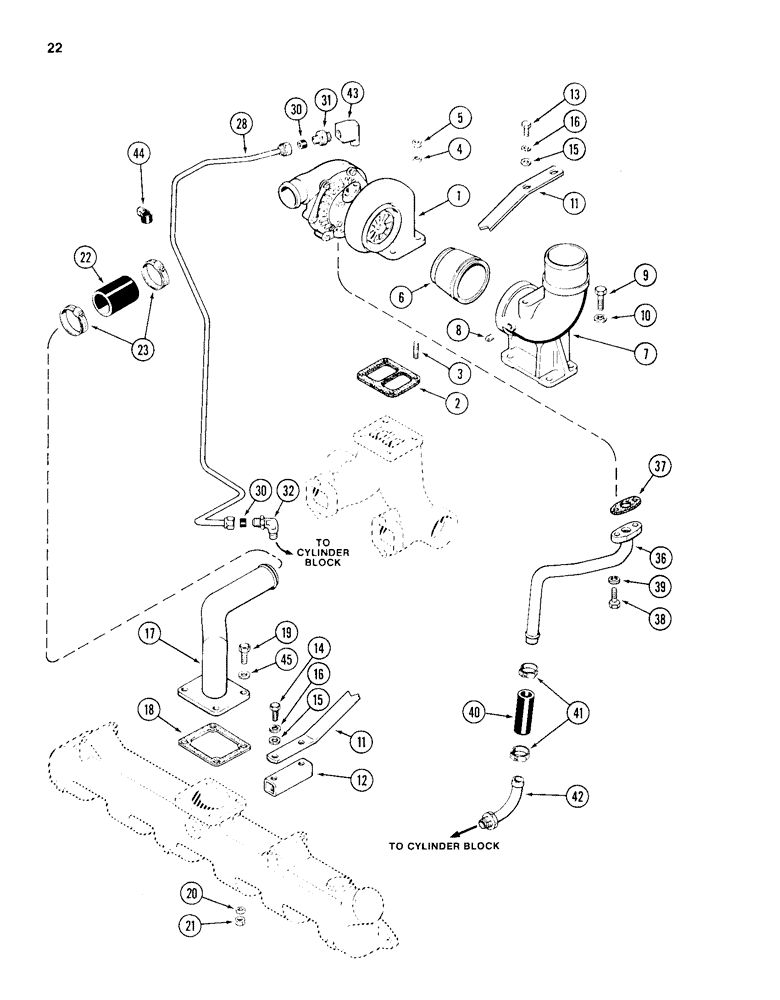

Запчасти Case 1150D (022) - TURBOCHARGER SYSTEM, 504BDT ALTITUDE COMPENSATING ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - new

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, use this P/N to return turbocharger core for credit

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- turbocharger to manifold, 3/8 NC x 1-7/16 "

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - hex Seez-pruf, 3/8 " NC

4шт.

6

A65554

TUBE

CONNECTOR - exhaust, Serial Range: elbow-turbocharger

1шт.

7

A61941

ELBOW

- exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

- elbow, square head, 1/4 " PT

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

A61944

BRACE

- exhaust elbow to intake manifold

1шт.

12

A67057

SPACER

- brace

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

15

95-6

WASHER,3/8"

- 3/8 x 1 x 1/16 inch (10 x 25 x 2 mm)

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A150450

ELBOW

- turbocharger to intake manifold

1шт.

18

A58910

GASKET

- elbow

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

22

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

- Elbow to turbocharger 2.00" ID x 2.88"

1шт.

23

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33 to 57 mm) #28, 1.31/2.25 Type F Worm

2шт.

28

A154424

TUBE

ASSEMBLY - oil supply, Includes: Ref. 30

1шт.

30

222-154

SLEEVE,3/8" Tube

- for 3/8 inch tube

2шт.

31

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - tube (to turbocharger)

1шт.

32

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- tube (to cylinder block)

1шт.

36

A62518

TUBE

- oil drain

1шт.

37

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 45 mm)

2шт.

42

A58897

FITTING

-, Serial Range: hose-block

1шт.

43

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree brass

1шт.

44

49845

CLAMP

CLIP - oil drain tube

1шт.

45

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.
