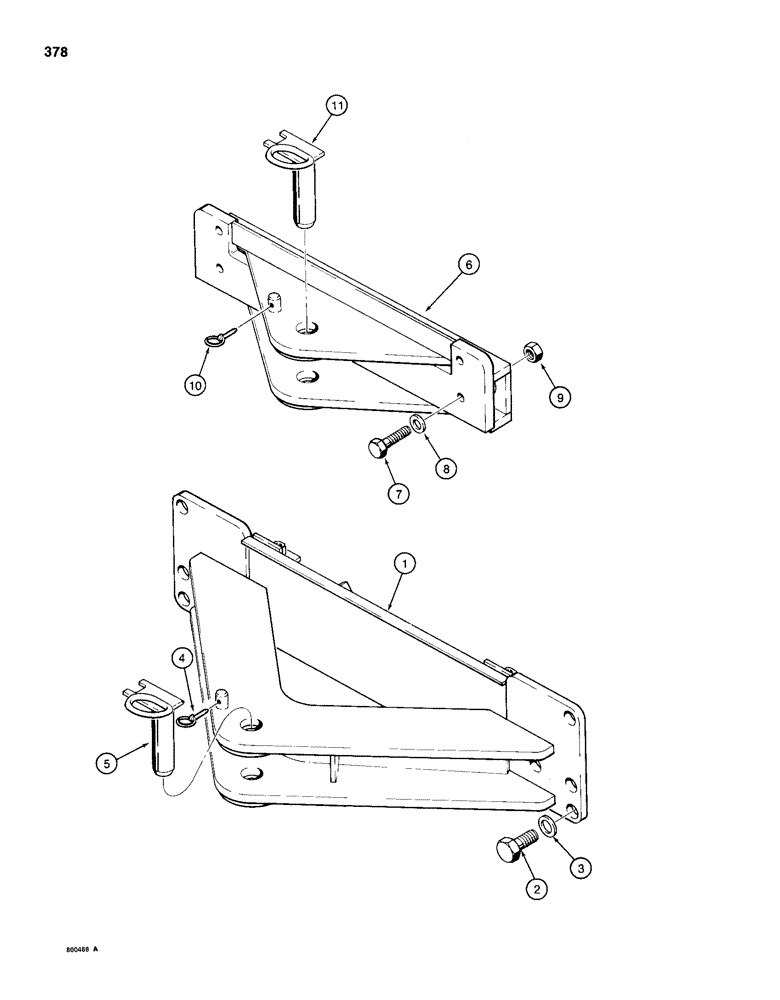

Запчасти Case 1150D (378) - DRAWBARS, MODELS WITHOUT REAR MOUNTED EQUIPMENT, RIPPER MODELS (09) - CHASSIS/ATTACHMENTS

1

R43756

DRAWBAR

- used without rear mounted equipment

1шт.

2

113-923

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

8шт.

4

A30338

PIN

- self-locking

1шт.

5

R26750

PIN

- drawbar

1шт.

6

R42173

DRAWBAR, SWINGING

DRAWBAR - ripper models, bolts to main frame, if used, for the drawbar that welds to the ripper tool bar, Fig. 377, ripper models

1шт.

7

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Ripper models Hex, 3/4"-10 x 3", G5

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, ripper models

4шт.

9

129-108

NUT,3/4"-10, G5

Ripper models 3/4"-10, G5

4шт.

10

A30338

PIN

- self-locking, ripper models

1шт.

11

R26750

PIN

- drawbar, ripper models

1шт.
