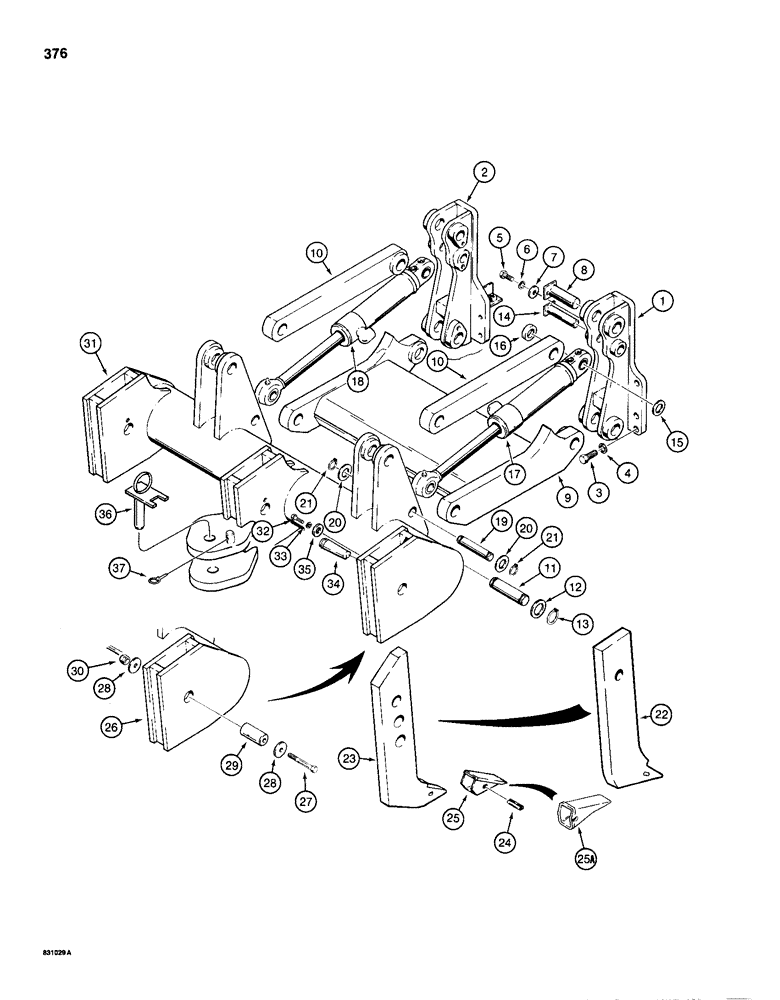

Запчасти Case 1150D (376) - RIPPER, TOOL BAR WITH DRILLED PIN FOR SHANK MOUNTING, IF USED (09) - CHASSIS/ATTACHMENTS

1

R38913

PLATE

BRACKET - mounting, right-hand

1шт.

2

R38914

PLATE

BRACKET - mounting, left-hand

1шт.

3

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4", grade 8

18шт.

4

D30196

WASHER

- hardened

18шт.

5

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

6шт.

8

R38745

PIN

- mounting, lower and upper, Serial Range: arms-brackets

4шт.

9

R38907

ARM

- ripper, lower

1шт.

10

R36114

ARM

- ripper, upper

2шт.

11

R26748

PIN

- mounting, lower and upper arms to tool bar

4шт.

12

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2", special

8шт.

13

D26919

SNAP RING,#200, Ext

RING, Snap, , pin #200, Ext

8шт.

14

R38178

PIN

- mounting, cylinder

2шт.

15

R26690

WASHER

SPACER - washer, outer

2шт.

16

R26689

RING

SPACER - washer, inner

2шт.

17

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - ripper, right-hand, parts list Fig. 310

1шт.

18

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - ripper, left-hand, parts list Fig. 310

1шт.

19

R30449

PIN

- cylinder to tool bar

2шт.

20

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", special

4шт.

21

D25280

SNAP RING,#175, Ext

RING, Snap, , pin #175, Ext

4шт.

22

R46437

SHANK

- ripper tooth, with one hole for depth adjustment, if used

3шт.

23

R48569

SHANK, BUCKET TOOTH

SHANK - ripper tooth, with three holes for depth adjustment, if used

3шт.

24

L32090

PIN

PIN - flex, No. 25

3шт.

25a

D55468

TOOTH

- tooth, forged

3шт.

26

R36116

TOOL

BAR - tool, ripper shank, does not includes welded-on drawbar, no longer available, order Ref. 31-37, tool bar with drilles pin for shank mounting, if used

1шт.

27

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

Tool bar with drilles pin for shank mounting, if used Hex, 5/8"-11 x 5 1/2", G5

3шт.

28

195-544

WASHER

- flat, 5/8", plated, tool bar with drilles pin for shank mounting, if used

6шт.

29

R26693

PIN

- drilled, shank mounting, tool bar with drilles pin for shank mounting, if used

3шт.

30

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, , Tool bar with drilles pin for shank mounting, if used 5/8"-11, GB

3шт.

31

R51063

BEAM

BAR - tool, includes welded-on drawbar, tool bar with retained pin for shank mounting, if used

1шт.

32

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Tool bar with retained pin for shank mounting, if used Hex, 5/8"-11 x 1 1/4", G5, Full Thd

3шт.

33

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Tool bar with retained pin for shank mounting, if used 5/8"

3шт.

34

R45977

AXLE PIN,50.8mm OD x 139.7mm L

PIN - washer retained, shank mounting, tool bar with retained pin for shank mounting, if used

3шт.

35

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- hardened, pin retaining, tool bar with retained pin for shank mounting, if used

3шт.

36

R26750

PIN

- drawbar, tool bar with retained pin for shank mounting, if used

1шт.

37

A30338

PIN

- self-locking, drawbar pin, tool bar with retained pin for shank mounting, if used

1шт.
