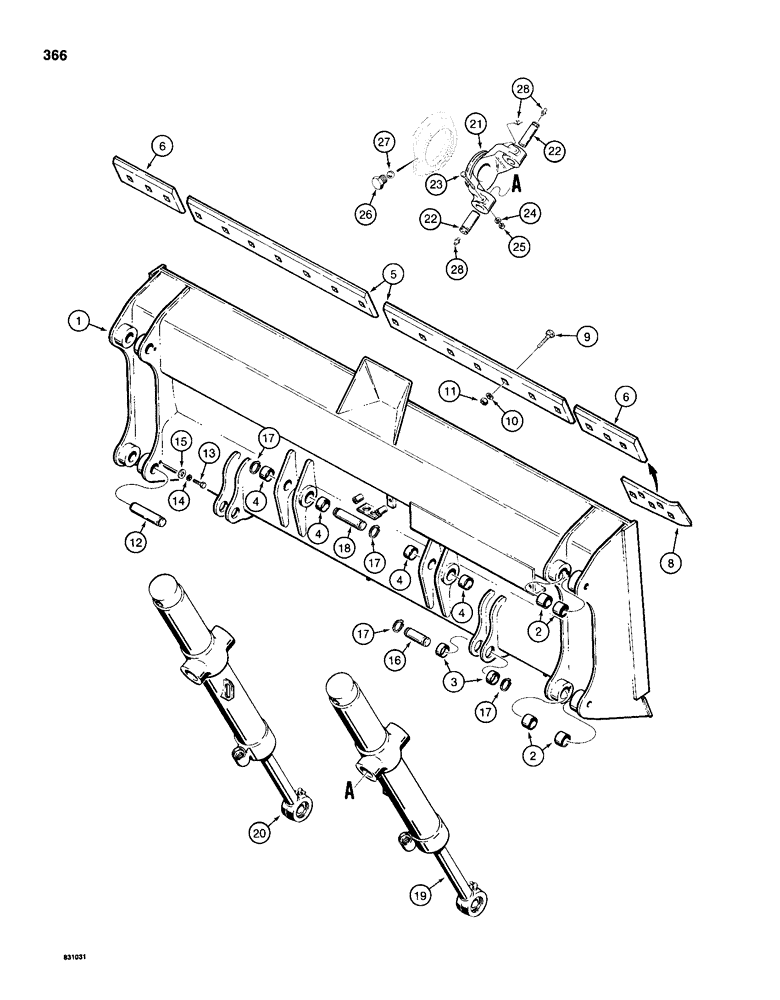

Запчасти Case 1150D (366) - TILT DOZER MODELS, BLADE AND LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R45441

HALF BLADE

BLADE ASSEMBLY - 105-1/2" (2680 mm) wide dozer blade, if used, Includes: Ref. 2 - 4

1шт.

1

R45443

BULL BLADE

BLADE ASSEMBLY - 129-1/2" (3289 mm) wide dozer blade, if used, Includes: Ref. 2 - 4

1шт.

2

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-1/2" (38 mm) long, right-hand end of blade only, upper and lower

4шт.

3

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- 3/4" (19 mm) long, inner push beam mounting, right-hand side only

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1" (25 mm) long, lift cylinder mounting

4шт.

5

R45446

EDGE

CUTTING EDGE - center, 105-1/2" (2680 mm) wide blade

2шт.

5

R45447

EDGE, CUTTING

CUTTING EDGE - center, 129-1/2" (3289 mm) wide blade

2шт.

6

R42470

EDGE, CUTTING

CUTTING EDGE - end, standard, if used

2шт.

7

R41351

EDGE, CUTTING

CUTTING EDGE - left-hand end, heavy duty, if used, not shown

1шт.

8

R41352

EDGE, CUTTING

CUTTING EDGE - right-hand end, heavy duty, if used

1шт.

9

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8

18-24шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18-24шт.

11

129-183

NUT,5/8"-11, G8

18-24шт.

12

R45497

PIN

- push beam to blade, outer

2шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

V20216

HOSE

- flat, pin retaining

2шт.

16

R45661

PIN

- push beam to blade, inner

2шт.

17

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

18

R26725

PIN,152.4mm OD x 44.45mm L

- Lift, Serial Range: cylinder-blade

2шт.

19

G103102

CYLINDER

ASSEMBLY - right-hand lift, parts list Fig. 300

1шт.

20

G103103

CYLINDER

ASSEMBLY - left-hand lift, parts list Fig. 300

1шт.

21

R45785

TRUNNION

- lift cylinder

2шт.

22

D36176

PIN,38.1mm OD x 63.5mm L

- trunnion

4шт.

23

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

D28481

PLUG

- trunnion

2шт.

27

211-219

BALL

- 3/4", grade 25, chrome alloy steel

50шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.
