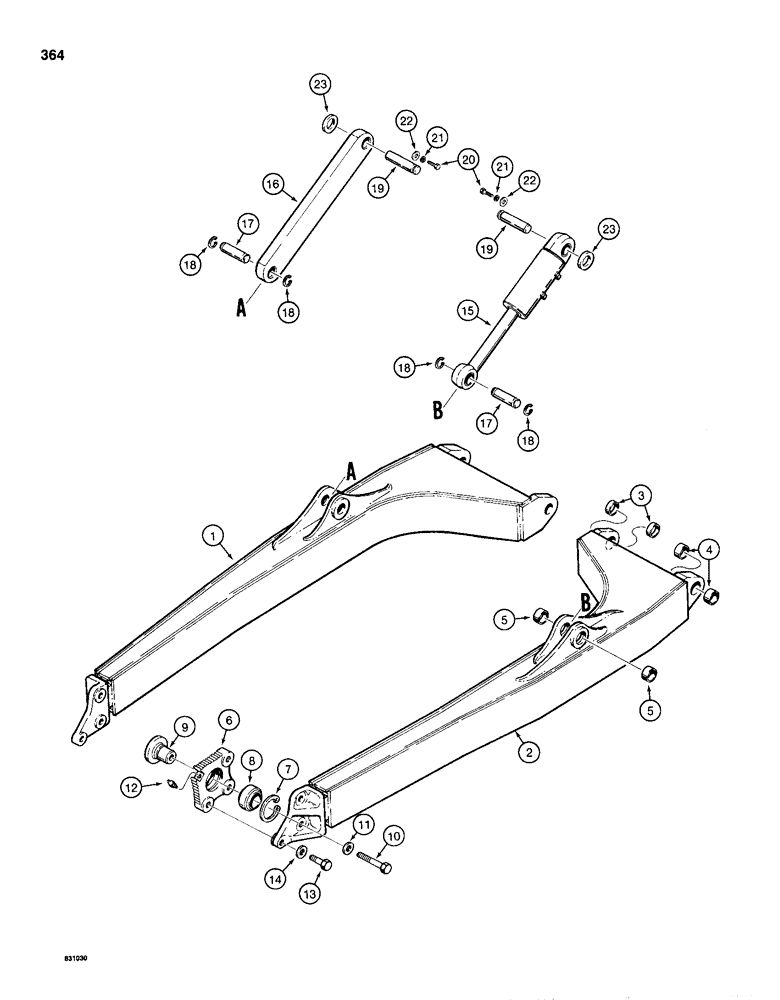

Запчасти Case 1150D (364) - TILT DOZER MODELS, PUSH BEAMS, TILT CYLINDER AND STRUT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R46383

ARM ASSY.

PUSH BEAM - left-hand, no bushings, Includes: Ref. 3 - 5

1шт.

2

R46384

ARM ASSY.

PUSH BEAM - right-hand, includes bushings, Includes: Ref. 3 - 5

1шт.

3

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- inner, blade mounting, right-hand push beam

2шт.

4

D35071

BUSHING

- outer, blade mounting, right-hand push beam

2шт.

5

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tilt cylinder mounting, right-hand push beam

2шт.

R44976

BLOCK

ASSEMBLY - trunnion, Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - trunnion

1шт.

7

A55435

SNAP RING,3.938", Int, #393

RING, Snap, , bushing 3.938", Int, #393

1шт.

8

R40475

BUSHING

- self-aligning

1шт.

9

R48700

PIN

- trunnion

2шт.

10

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

- hex head, 1" - 8 NC x 6", grade 8

2шт.

11

R35127

WASHER

- hardened

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

13

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4", grade 8, use with Loctite

6шт.

14

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

6шт.

15

G107405

CYLINDER

- tilt, parts list Fig. 304

1шт.

16

R37276

STRUT

- blade, left-hand side only

1шт.

17

D127101

PIN

- strut and tilt cylinder to push beams

2шт.

18

D25280

SNAP RING,#175, Ext

RING, Snap, , pin #175, Ext

4шт.

19

R45497

PIN

- strut and tilt, Serial Range: cylinder-blade

2шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

V20216

HOSE

- special

2шт.

23

L50511

WASHER

THRUST WASHER - strut and tilt cylinder

2шт.
