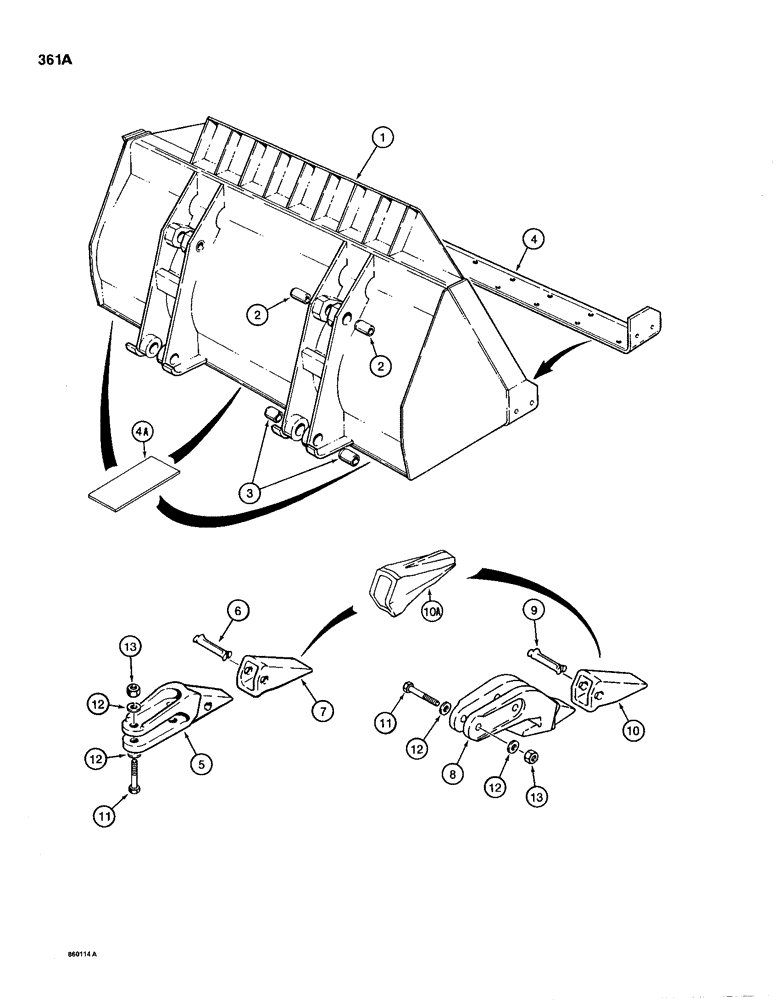

Запчасти Case 1150D (361A) - LOADER BUCKET, TEETH USE 1" DIAMETER HARDWARE, IF USED, 1-3/4 CUBIC YARD BUCKET (09) - CHASSIS/ATTACHMENTS

1

R54264

BUCKET ASSEMBLY - machinery item, Fig. 2 for ordering, uses 1" dia. mounting hardware for bucket teeth Includes: Ref. 2 - 4A

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- bucket, upper

4шт.

3

R26958

BUSHING

- bucket, lower

4шт.

4

R54188

EDGE, CUTTING

CUTTING EDGE - bucket, uses 1" diameter mounting hardware for teeth

1шт.

4a

R52652

LARGE PLATE

WEAR PLATE - bucket, weld on

3шт.

R54193

TOOTH

ASSEMBLY - bucket, center, heavy duty bucket teeth, use 1 dia. mounting harware, if used, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly, heavy duty bucket teeth, use 1 dia. mounting harware, if used

1шт.

Five sets of holes at 291mm

1шт.

6

L33611

BUCKET TOOTH KEY

PIN - flex, heavy duty teeth, use 1 dia. mounting harware, if used

1шт.

7

D55468

TOOTH

- tooth, standard forged, if used, heavy duty bucket teeth, use 1 dia. mounting harware, if used

1шт.

R54194

TOOTH

ASSEMBLY - corner, left-hand tooth assembly shown, heavy duty bucket teeth, use 1 dia. mounting harware, if used, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

SHANK - corner tooth, heavy duty bucket teeth, use 1 dia. mounting harware, if used

1шт.

9

L33611

BUCKET TOOTH KEY

PIN - flex, heavy duty bucket teeth, use 1 dia. mounting harware, if used

1шт.

10

D55468

TOOTH

- tooth, standard forged, heavy duty bucket teeth, use 1 dia. mounting harware, if used

1шт.

10a

R54258

POINT

- tooth, star, service replacement option,( replaced R45258 ), heavy duty bucket teeth, use 1 dia. mounting harware, if used

1шт.

11

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

- hex head, 1" - 8 NC x 3-1/2", grade 8, heavy duty bucket teeth, use 1 dia. mounting harware, if used

16шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, hardened, heavy duty bucket teeth, use 1" dia. mounting harware, if used

32шт.

13

131-1221

LOCK NUT,1"-8, GC

NUT - hex, self-locking, - 8 NC, plated, heavy duty bucket teeth, use 1 dia. mounting harware, if used

16шт.
