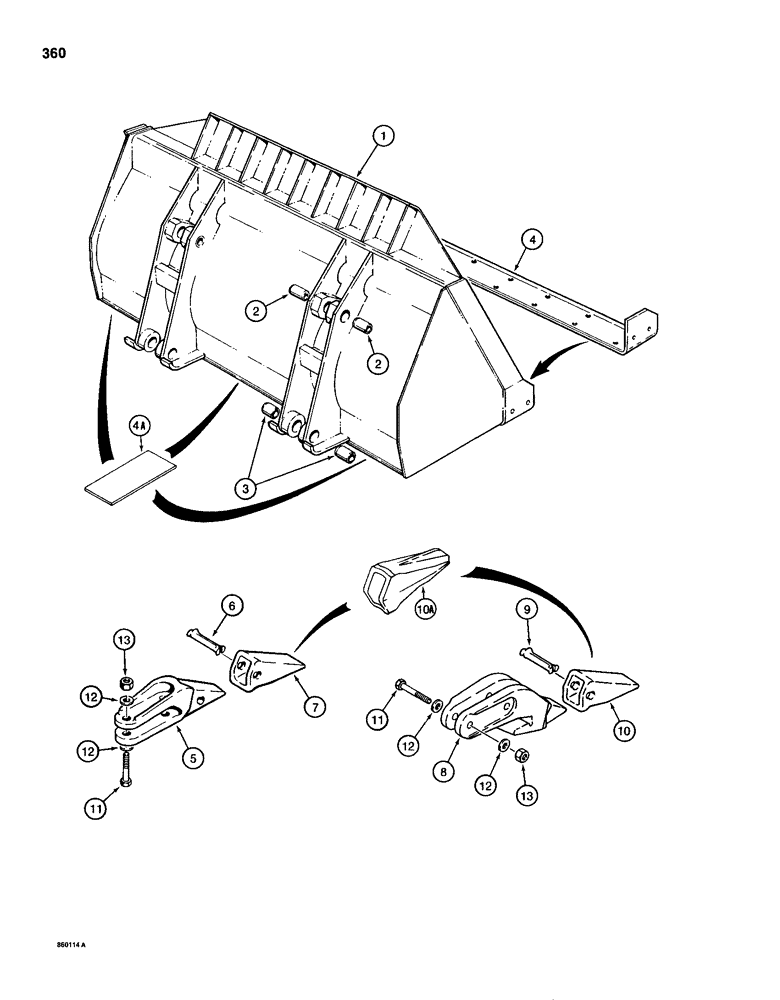

Запчасти Case 1150D (360) - LOADER BUCKET, TEETH USE 3/4" DIAMETER HARDWARE, IF USED, 1-3/4 CUBIC YARD BUCKET (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R52653
BUCKET ASSEMBLY - uses 3/4" dia. mounting hardware for bucket teeth (replaces R51657 bucket which also used 3/4" dia. tooth hardware), no longer used, order R54264 bucket, bucket teeth, and hardware on Fig. 361A 2 - 4A
1шт.
2
D34506
BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L
- bucket, upper
4шт.
3
R26958
BUSHING
- bucket, lower
4шт.
4
R51168
EDGE
CUTTING EDGE - bucket, uses 3/4" diameter mounting hardware for teeth, if used, may be replaced with cutting edge, bucket teeth, and on Fig. 361A
1шт.
4a
R52652
LARGE PLATE
WEAR PLATE - bucket, weld on
3шт.
R51172
TOOTH
ASSEMBLY - bucket, center, Includes: Ref. 5 - 7, heavy duty bucket teeth - use 3/4" diameter hardware, if used
6шт.
5
NSS
NOT SOLD SEPARAT
SHANK - tooth assembly, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
6
L33611
BUCKET TOOTH KEY
PIN - flex, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
7
D55468
TOOTH
- tooth, standard forged, if used, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
R51173
TOOTH
ASSEMBLY - corner, left-hand tooth assembly shown, Includes: Ref. 8 - 10, heavy duty bucket teeth - use 3/4" diameter hardware, if used
2шт.
8
NSS
NOT SOLD SEPARAT
SHANK - corner tooth, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
9
L33611
BUCKET TOOTH KEY
PIN - flex, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
10
D55468
TOOTH
- tooth, standard forged, if used, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
10a
R45258
POINT - tooth, star, service replacement option, if used, heavy duty bucket teeth - use 3/4" diameter hardware, if used
1шт.
11
26-1252
BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8
- hex head, 3/4" - 10 NC x 3-1/4", grade 8, heavy duty bucket teeth - use 3/4" diameter hardware, if used
16шт.
12
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- flat, 3/4", hardened, heavy duty bucket teeth - use 3/4" diameter hardware, if used
32шт.
13
131-1152
LOCK NUT,3/4"-10, GC
NUT, LOCK, , Heavy duty bucket teeth - use 3/4" diameter hardware, if used 3/4"-10, GC
16шт.
Выбрано товаров: 17
