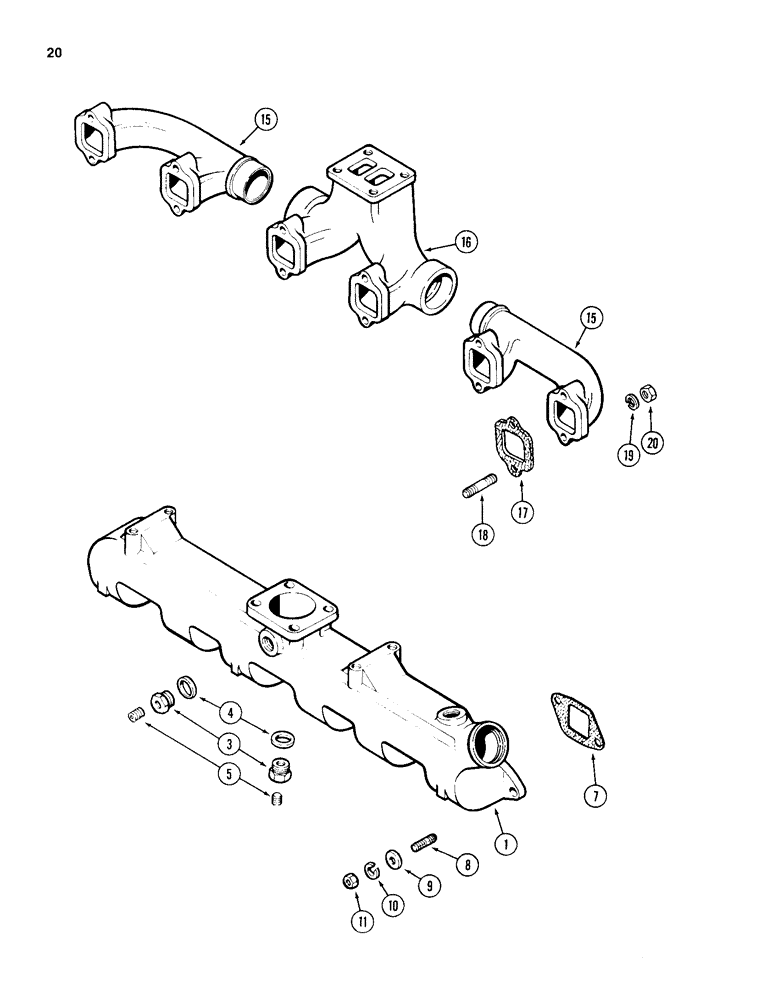

Запчасти Case 1150D (020) - MANIFOLDS, 504BDT ALTITUDE COMPENSATING ENGINE, INTAKE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 3 - 5

1шт.

3

L10283

PLUG

- heater hole

2шт.

4

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

5

221-1849

PLUG

- hex socket head, 1/8 inch PT

2шт.

7

A58662

MANIFOLD GASKET

- intake manifold

6шт.

8

A59077

STUD

- intake manifold, 3/8 NC x 1-3/4 inch

12шт.

9

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

12шт.

10

92-6

LOCK WASHER,3/8"

NC 3/8"

12шт.

11

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8" NC

12шт.

15

A65917

MANIFOLD

- exhaust, ends

2шт.

16

A76322

MANIFOLD

- exhaust, center

1шт.

17

A58895

GASKET

- exhaust manifold (metal faced)

6шт.

18

A140924

STUD

- exhaust manifold, 3/8 inch NC x 2-7/16 inch

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - hex Seez-Pruf, 3/8 inch NC, exhaust

12шт.
