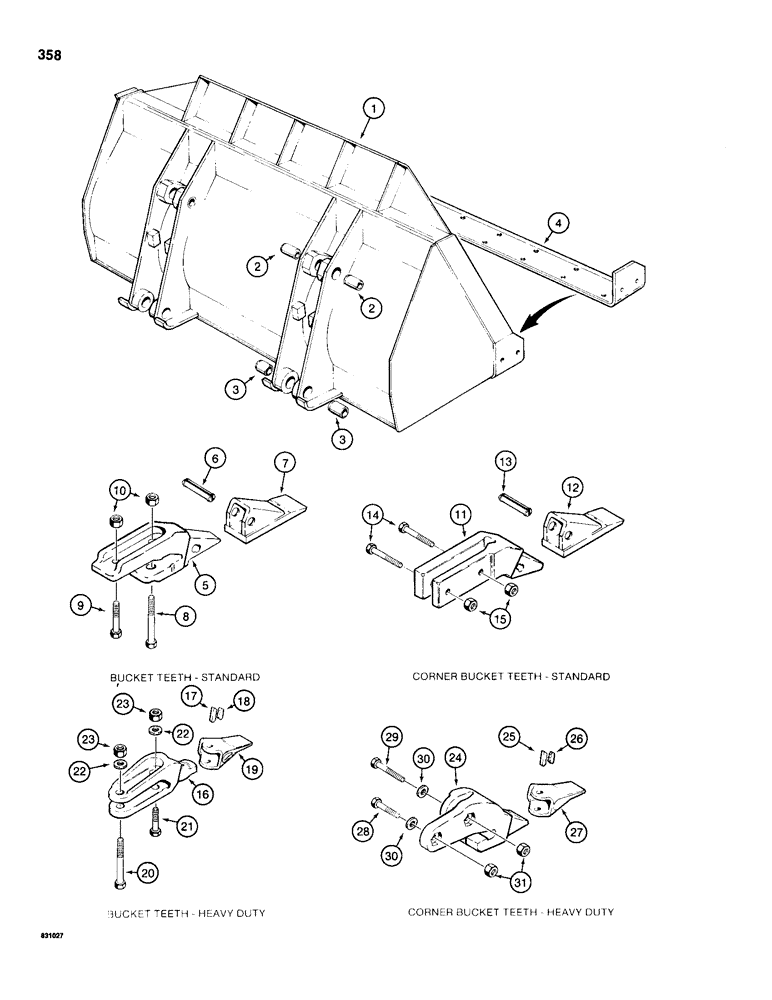

Запчасти Case 1150D (358) - LOADER BUCKET, TEETH USE 5/8" DIAMETER HARDWARE, IF USED, 1-3/4 CUBIC YARD BUCKET (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R48419
BUCKET ASSEMBLY - uses 5/8" dia. mounting hardware for bucket teeth, no longer available, order R54264 bucket, bucket teeth, and hardware on Fig. 361A Includes: Ref. 2 - 4
1шт.
2
D34506
BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L
- bucket, upper
4шт.
3
R26958
BUSHING
- bucket, lower
4шт.
4
R45464
EDGE
CUTTING EDGE - uses 5/8" dia. mounting hardware for teeth, no longer available, order cutting edge and teeth and hardware on Fig. 362
1шт.
NLS
NO LONGER SERVICED
- bucket, center, Includes: Ref. 5 - 7, standard bucket teeth - use 5/8" diameter hardware, if used
6шт.
5
NSS
NOT SOLD SEPARAT
SHANK - tooth assembly, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
6
L32090
PIN
PIN - flex, tooth assembly, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
7
L32089
POINT
- tooth assembly, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
8
26-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8
- hex head, 5/8" - 11 NC x 3-1/2", grade 8, standard bucket teeth - use 5/8" diameter hardware, if used
6шт.
9
26-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8
- hex head, 5/8" - 11 NC x 2-3/4", grade 8, standard bucket teeth - use 5/8" diameter hardware, if used
6шт.
10
131-1219
LOCK NUT,5/8"-11, GC
NUT, LOCK, , Standard bucket teeth - use 5/8" diameter hardware, if used 5/8"-11, GC
12шт.
R46452
SHANK
TOOTH ASSEMBLY - corner, right-hand, not shown, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
R46453
SHANK
TOOTH ASSEMBLY - corner, left-hand, Includes: Ref. 11 - 13, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
11
NSS
NOT SOLD SEPARAT
SHANK - R46452 and R46453 tooth assemblies, left-hand shown, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
12
L32089
POINT
- tooth assembly, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
13
L32090
PIN
PIN - flex, standard bucket teeth - use 5/8" diameter hardware, if used
1шт.
14
26-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 8
- hex head, 5/8" - 11 NC x 3", grade 8, standard bucket teeth - use 5/8" diameter hardware, if used
4шт.
15
131-1219
LOCK NUT,5/8"-11, GC
NUT, LOCK, , Standard bucket teeth - use 5/8" diameter hardware, if used 5/8"-11, GC
4шт.
R35708
TOOTH
ASSEMBLY - bucket, center, Includes: Ref. 16 - 19, heavy duty bucket teeth - use 5/8" diameter hardware, if used
6шт.
16
NSS
NOT SOLD SEPARAT
SHANK - tooth assembly, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
17
R31916
PIN
- tooth assembly, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
18
R31917
KEY
LOCK - pin, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
19
R35707
TOOTH
POINT - tooth assembly, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
20
26-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 8
- hex head, 5/8" - 11 NC x 3", grade 8, heavy duty bucket teeth - use 5/8" diameter hardware, if used
6шт.
21
26-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
- hex head, 5/8" - 11 NC x 2-1/2", grade 8, heavy duty bucket teeth - use 5/8" diameter hardware, if used
6шт.
22
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - hardened, heavy duty bucket teeth - use 5/8" diameter hardware, if used
12шт.
23
131-1219
LOCK NUT,5/8"-11, GC
NUT, LOCK, , Heavy duty bucket teeth - use 5/8" diameter hardware, if used 5/8"-11, GC
12шт.
R45058
TOOTH
ASSEMBLY - corner, right-hand, not shown, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
R45059
TOOTH
ASSEMBLY - corner, left-hand, Includes: Ref. 24 - 27, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
24
NSS
NOT SOLD SEPARAT
SHANK - R45058 and R45059 tooth assemblies, left-hand shown, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
25
R31916
PIN
- tooth assembly, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
26
R31917
KEY
LOCK - pin, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
27
R35707
TOOTH
POINT - tooth assembly, heavy duty bucket teeth - use 5/8" diameter hardware, if used
1шт.
28
26-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
- hex head, 5/8" - 11 NC x 2-1/2", grade 8, heavy duty bucket teeth - use 5/8" diameter hardware, if used
2шт.
29
26-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 8
- hex head, 5/8" - 11 NC x 3", grade 8, heavy duty bucket teeth - use 5/8" diameter hardware, if used
2шт.
30
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - hardened, heavy duty bucket teeth - use 5/8" diameter hardware, if used
4шт.
31
131-1219
LOCK NUT,5/8"-11, GC
NUT, LOCK, , Heavy duty bucket teeth - use 5/8" diameter hardware, if used 5/8"-11, GC
4шт.
Выбрано товаров: 37
