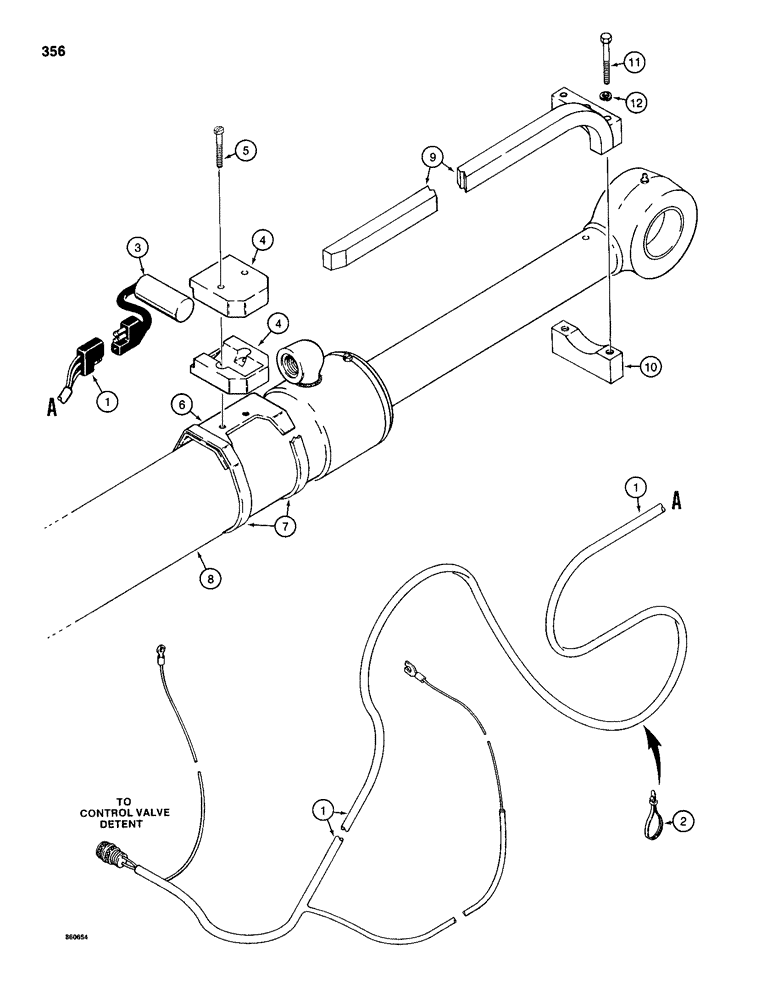

Запчасти Case 1150D (356) - LOADER RETURN-TO-DIG, WITH ELECTRICAL SENSING-TYPE SWITCH, IF USED (09) - CHASSIS/ATTACHMENTS

1

R53611

HARNESS

- return-to-dig switch to magnetic detent section of control valve and to engine oil pressure switch behind the instrument panel, includes magnetic detent connector

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

R47120

SWITCH

- return-to-dig, electrical sensing-type

1шт.

4

L117005

CLAMP

- return-to-dig switch, plastic

2шт.

5

182-589

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 1-3/4", plated

2шт.

6

R52656

LARGE PLATE

BRACKET - switch mounting

1шт.

7

214-182

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP - adjustable, switch mounting bracket to bucket cylinder

2шт.

8

G104587

CYLINDER - loader bucket, left-hand, parts list Fig. 296

1шт.

9

R52462

ARM

- return-to-dig

1шт.

10

R52461

BLOCK

- arm retaining

1шт.

11

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
