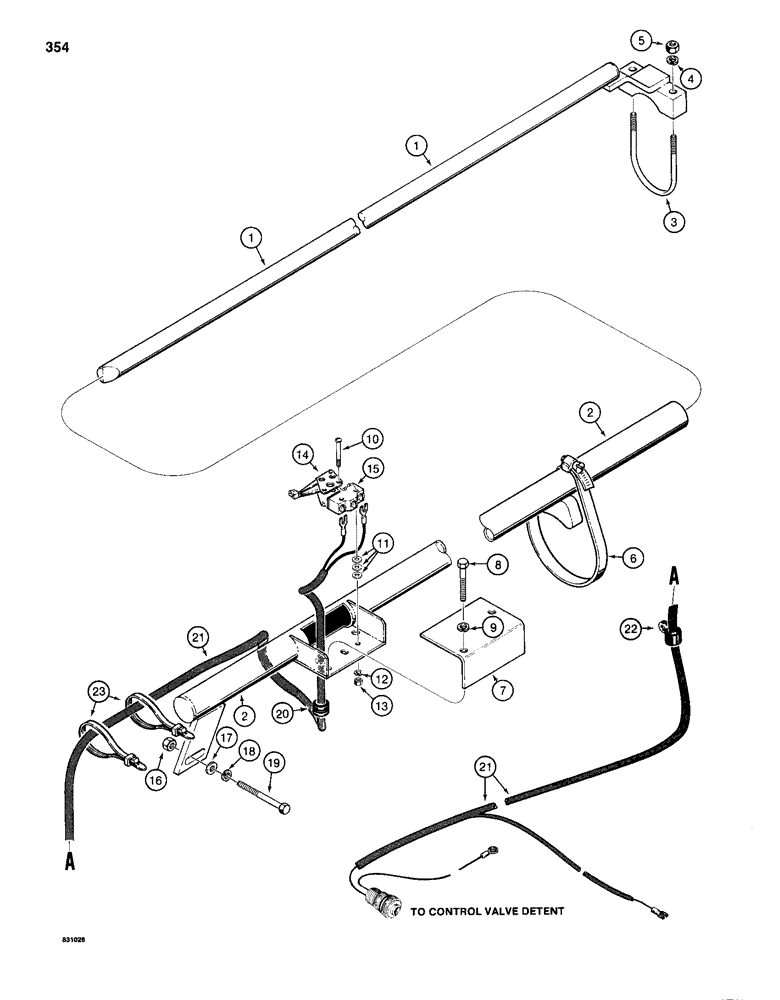

Запчасти Case 1150D (354) - LOADER RETURN-TO-DIG, WITH CAM-TYPE ACTUATOR SWITCH, IF USED (09) - CHASSIS/ATTACHMENTS

1

R45474

SHAFT

ROD - return-to-dig actuator

1шт.

2

R45484

TUBE

- rod retaining

1шт.

3

R29760

BOLT

U-BOLT - rod retaining

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

214-185

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

CLAMP - tube to cylinder

1шт.

7

R46010

LID

COVER - switch box

1шт.

8

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

MACHINE SCREW - Fillister head, No. 6 - 32 NC x 1-1/2", plated

2шт.

11

195-507

WASHER,#6

- flat, No. 6, plated

1шт.

12

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

13

129-15

NUT,#6-32

2шт.

14

R33016

BRACKET

LEVER - switch

1шт.

15

R33015

SWITCH

- return-to-dig, cam-type

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

20

A23870

GROMMET

- harness

1шт.

21

R52050

HARNESS

- return-to-dig

1шт.

22

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- P-style, wiring harness at main frame upright

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
